Dell Latitude E6400 Screen Replacement

Disconnect AC power adaptor

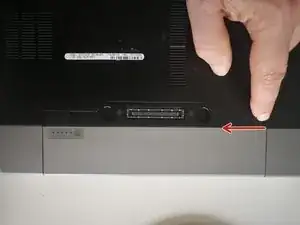

Push battery release tabs inwards.

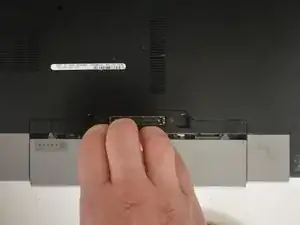

Slide the battery out of the computer.

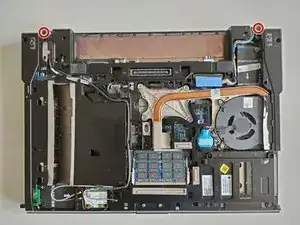

Remove the two 4.8mm Phillips screws securing the plastic lids.

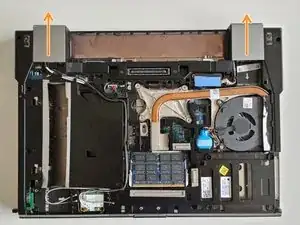

Slide the plastic lids of the case

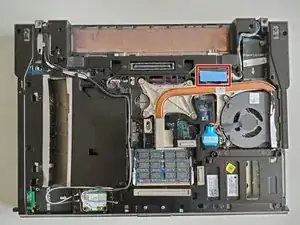

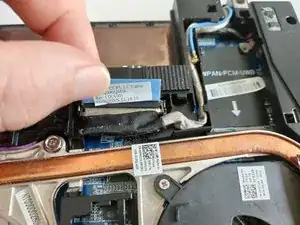

Grab the plastic pull tab secured to the display data cable lock and pull the display data cable connector straight up from its socket.

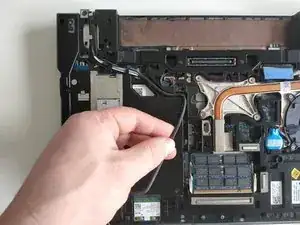

De-route the display data cable from the channel.

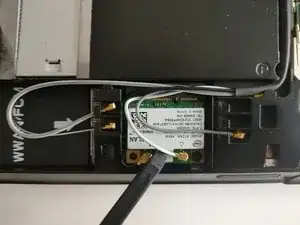

Using spudger lift and disconnect Wi-Fi antenna cable.

De-route the Wi-Fi antenna cable from it's channel.

Open your laptop so the display is perpendicular to the upper case.

Place your opened MacBook on a table as pictured.

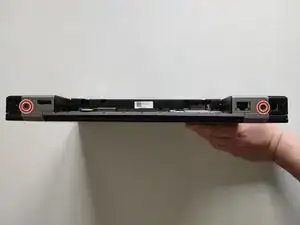

While holding the display and upper case together with your left hand, remove the two 4.8 mm Phillips screws from the display brackets.

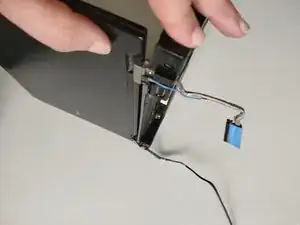

Grab the upper case with your right hand and rotate the display slightly away from the upper case. Lift the display away from the upper case, minding any brackets or cables that may get caught.
