Dell Latitude E6420 Wireless Card Replacement

Geschrieben von: Madysen Eames
  • Kommentare: 4
Dell Latitude E6420 Wireless Card Replacement

Schwierigkeitsgrad

Easy

Schritte

10

Zeitaufwand

20 Minuten

Einleitung

A faulty wireless card can affect wireless connection. This guide will show the user how to replace the wireless card.

  1. kBmFbDSAYPHbppII
    kBmFbDSAYPHbppII
    kXNDGAolSDHSwySJ

    • Push the tabs on the left and right of the battery out towards the edge of the case.

  2. RCsHVdWPLbDGNJ62

    • While still pushing in the tabs, using your pinky finger, lift the battery out of the laptop.

  3. ALrYRveYmIM1QfDj
    ALrYRveYmIM1QfDj
    1Rgr3yTKxsHsxKbA

    • Push the button in on the CD/DVD drive to eject the drive.

    It is unnecessary to remove the CD/DVD drive to remove the keyboard.

    johnewert -

  4. AGsagT4uS2cQ1OVM
    AGsagT4uS2cQ1OVM
    thM565cKyQkjKwBB

    • Slide the drive out of the laptop.

    • When removing the drive, keep it flat to prevent damage to anything inside the laptop.

  5. 1F1TdkhZQPvYqkJS
    1F1TdkhZQPvYqkJS
    XfjMse6UumMZSm6D

    • Using the screwdriver, remove seven 4mm Phillips #1 screws from the bottom of the laptop.

    • Using the screwdriver, remove two 9mm Phillips #00 screws from the bottom of the laptop.

    It is unnecessary to remove the 4mm Philips #1 screws to remove the keyboard

    johnewert -

  6. bNAVsYbrI1AkT6Pb
    bNAVsYbrI1AkT6Pb
    yeYw24rxUEnBUoHL

    • Gently lift the back plate off of the laptop making sure all of the tabs on the inside perimeter of the back plate are unhooked before lifting.

    • Be careful when removing the backplate. Lifting the backplate while the tabs are still hooked in will result in broken tabs.

    Additionally, it is unnecessary to remove the bottom cover to remove the keyboard.

    johnewert -

  7. qF4dPdPVbN1Z5wGR
    qF4dPdPVbN1Z5wGR
    kNGEYM2PYnKKZfMP

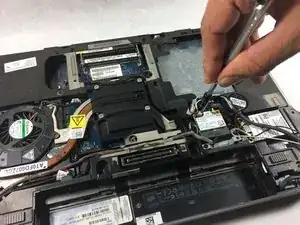

    • Using the screwdriver, remove two 4mm JIS #0 screws.

  8. jZsRls5BTYwLet4c
    jZsRls5BTYwLet4c
    HJkhStHiF3RjYFMi
    qL6KFDGfdwDyDQmP

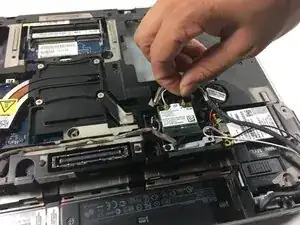

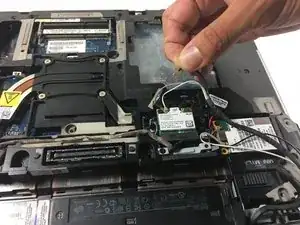

    • Disconnect 4 wires by pulling upward.

    • Gently remove the wires to prevent damaging them.

  9. KqGXSEKxygSeKjni

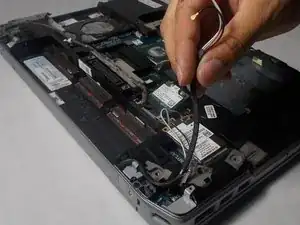

    • Lift the wiring harness out of the way.

  10. FTUSdYMajWncdceW
    FTUSdYMajWncdceW
    J5ZkU2ekwvlSdNNE
    SJ1pDHxFilBZCYeL

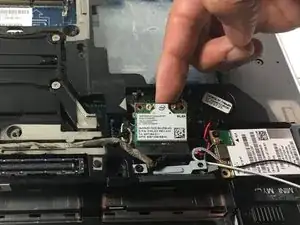

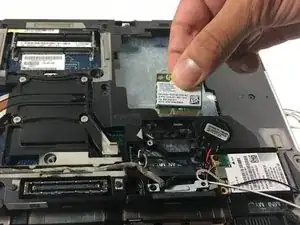

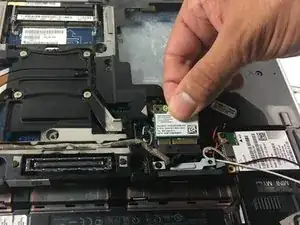

    • The card will lift up, remove the card by pulling the lifted edge away from you.

    Question, What is the best wireless card to buy for this laptop? Can upgrade it to wifi-6?

    H M Swafford -

Abschluss

To reassemble your device, follow these instructions in reverse order.
