Dell Latitude E6500 RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

Keine Schätzung

Einleitung

  1. YCfMjEyODHGUoZDD

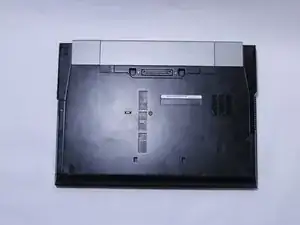

    • Turn laptop over with the hinges facing away.

  2. bd5eTUBBnYIDCiTK
    bd5eTUBBnYIDCiTK
    FtOEJBCp3aUrrCsK

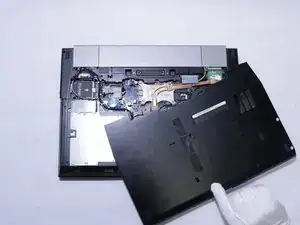

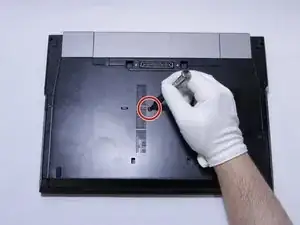

    • Use a J0 screwdriver to remove the center screw.

    • Slide the back cover towards you to remove.

  3. m3AINebgDytiKcZh

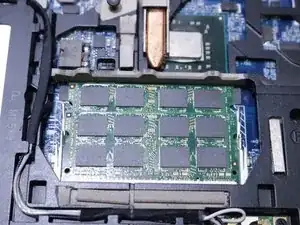

    • Locate the 4 hinges.

  4. 3NvQs1UCcowdrCMj
    3NvQs1UCcowdrCMj
    64YrCCZI6G3IwsEP
    A6DAtxCtDmCRjZOv

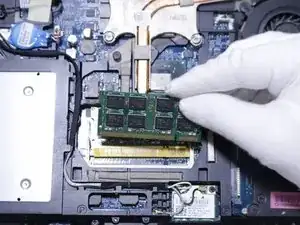

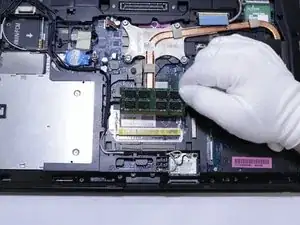

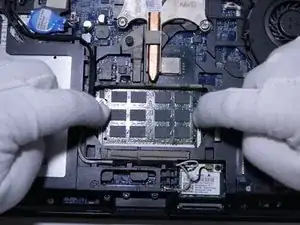

    • Push the first two hinges away from the RAM.

    • Remove first RAM card from the hinge.

    • Push the second two hinges away from the RAM to remove second RAM card.

Abschluss

To reassemble your device, follow these instructions in reverse order.
