This guide will show you the process of removing and replacing the heat sink system in your Latitude E6510.
Werkzeuge
-
-

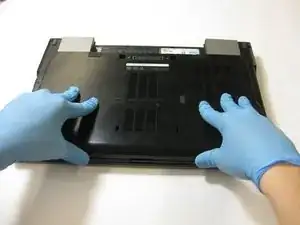

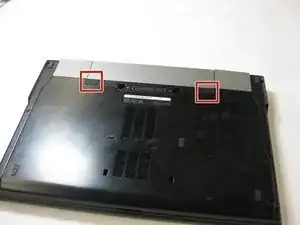

Locate the tabs that lock the battery in place.
-

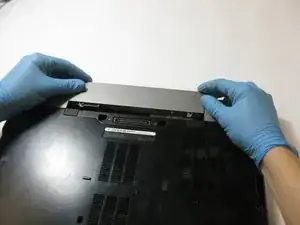

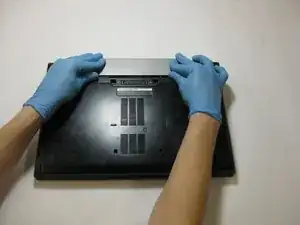

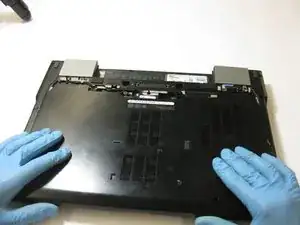

Push tabs towards each other while simultaneously pushing the battery away from the device.
-
-
-

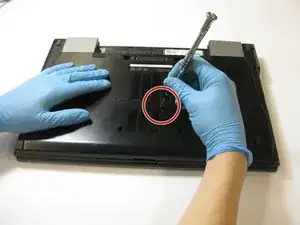

Unscrew the screw located in the center of the back panel. Do not completely remove the screw, a spring will keep it in place when it has been loosened.
-
Slide the panel back until it unlocks.
-
-
-

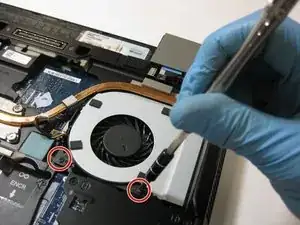

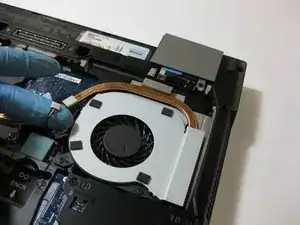

Unscrew the two 5.5 mm screws securing the fan.
-

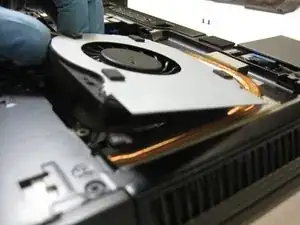

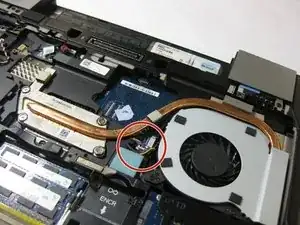

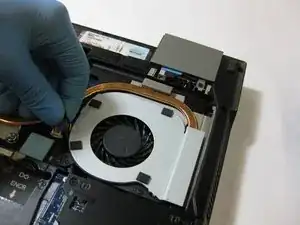

Lift the end of the fan opposite the copper wire up.
-

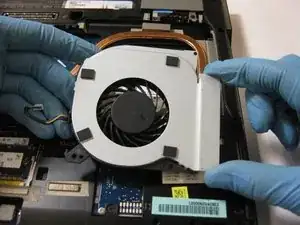

Pull the fan away from the device.
-
-
-

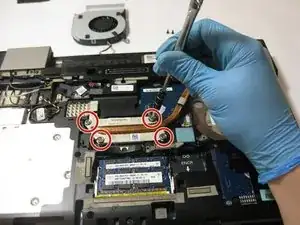

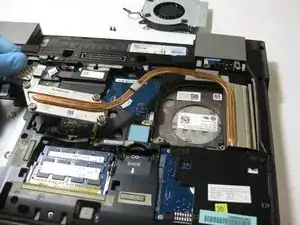

Locate and loosen the four silver screws holding down the heat redistribute component.
-
Do not competely remove the screws as springs keep the screws attached to the metal plate after you loosen them.
-
-
-

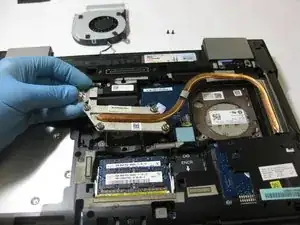

Lift the metal plate up on the end closest to the screws.
-

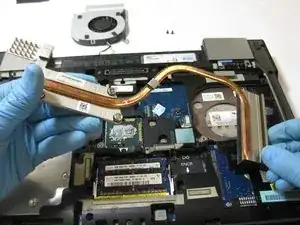

Slide the whole assembly away from where you removed the fan.
-
To reassemble your device, follow these instructions in reverse order.
