The prerequisite guide that is recommended to read before this guide will cover removing the fan from a Dell Latitude E6510.
This guide will cover how to replace the USB ports whether they are damaged or you are replacing them as a precautionary item. The product is the Dell Latitude E6510 computer.
Before using this guide make sure that the computer is powered off and that you have a clean workspace in which it is easy to keep track of all parts.
This guide requires you to know how to use a soldering iron safely as well as having a basic knowledge of how to use tools like a screwdriver.
Werkzeuge
-
-
Remove the back plate from the back of the device
-
Remove the 6 screws with the J1 screwdriver.
-

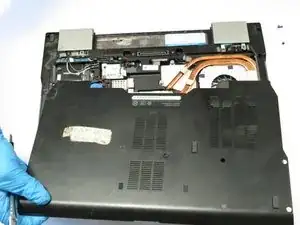

once the screws are out, slide back panel towards front of the device and lift up
-
-
-

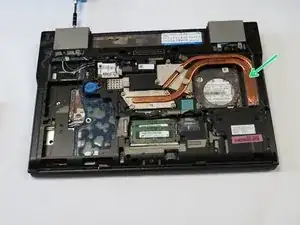

Remove two screws holding the fan
-
Slide from under copper heat sink
-
Unplug connector and remove
-
To reassemble, follow directions in reverse
-
-
-

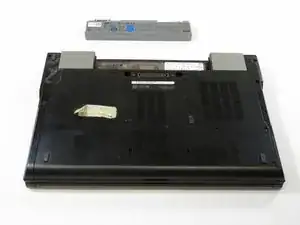

Remove the battery
-
Flip the computer so that it is facing downward.
-

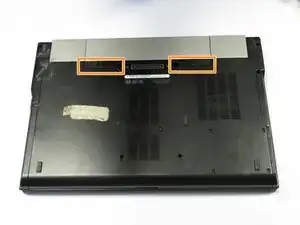

Next locate the two black clips as shown in the image.
-

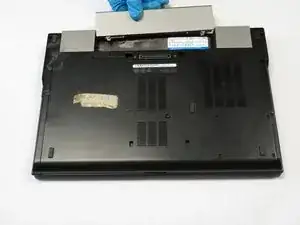

Slide the clips toward the middle in order to release the battery.
-
-
-
Remove the back plate from the back of the device.
-

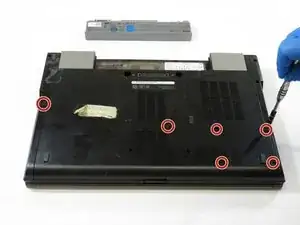

Using the Philips head screwdriver remove the 6 screws marked in red.
-
Next, slide the panel down and then lift up til completely removed.
-
-
-

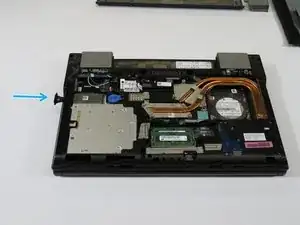

Press the button on the side of the optical drive in order to release the pull tab.
-

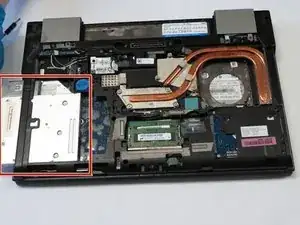

Next, pull out the optical drive located on the lower left hand side.
-

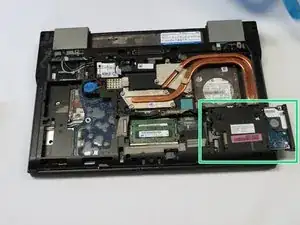

Locate the hard drive on the lower right hand side and remove it from the computer.
-
-
-

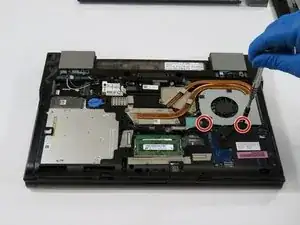

Using the Philips head screwdriver unscrew the two screws holding the fan.
-

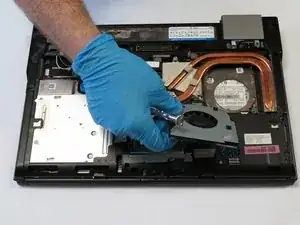

Next, slide the fan out from under the copper heat sink.
-

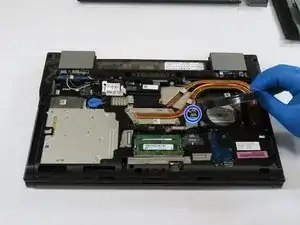

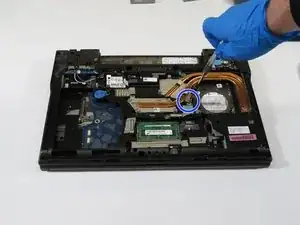

Unplug the connector marked in blue and remove the fan.
-
-
-

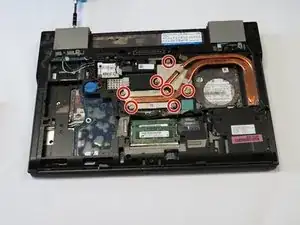

Using the Philips head screwdriver unscrew the seven screws holding down the copper heat sink.
-
Lift the heat sink slightly and slide out to remove it.
-
-
-

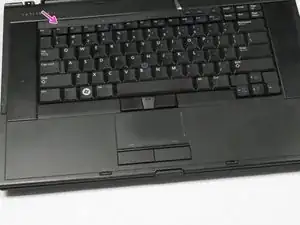

Using a spudger remove the volume bar above the keyboard
-

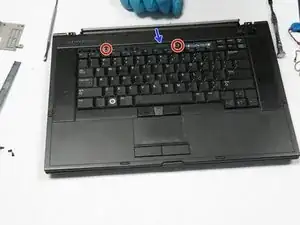

Using the Philips head screwdriver unscrew the two screws near the top of the keyboard.
-
Lift the keyboard membrane slightly by tab, and slide the keyboard towards the screen in order to remove.
-

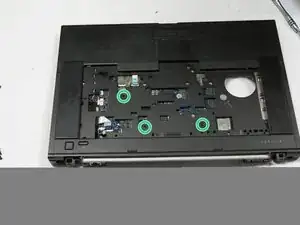

Using the Philips head screwdriver unscrew the three screws marked in green.
-
-
-

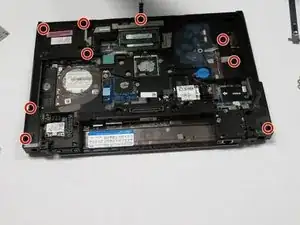

Using the Philip head screwdriver unscrew the eight screws holding down the chassis to get to the USB ports.
-
-
-

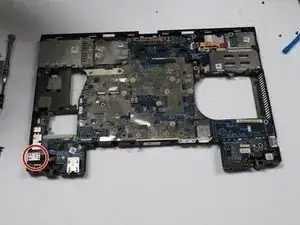

Remove the USB port by using a soldering iron to take out the connections on either side of the port.
-
To reassemble your device, follow these instructions in reverse order.
