Dell Latitude E6510 Hard Drive Replacement

Geschrieben von: Kolin Doyle
  • Kommentare: 0
Dell Latitude E6510 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

3 Minuten

Einleitung

Follow this guide in order to replace the hard drive to your Dell Latitude E6510.

  1. UvYGbvf26YZRu3MN

    • Unlock the two latches on the back by sliding them inwards.

  2. WLMVrTxf1GtWJNFG
    WLMVrTxf1GtWJNFG
    bNioxPduxXMUVfGP

    • Slide the battery out from the laptop.

  3. 2kr6CH3E5ShaOtrG
    2kr6CH3E5ShaOtrG
    OXKdevMUmErdYg5Z

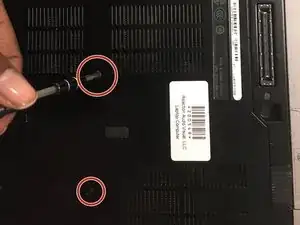

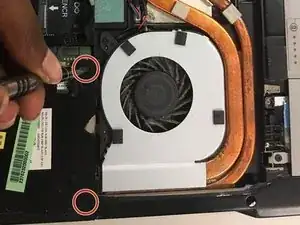

    • After removing the battery, unscrew the four 3 mm screws on the back plate using a Phillips #1 screwdriver.

    • The back plate does not need to be removed. Removed only for a clear view.

  4. LjIXSOx1ER1IU2vK
    LjIXSOx1ER1IU2vK
    2sDoSdFjc1tKUKIi

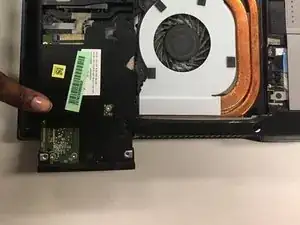

    • The hard drive should slide out of the laptop. However, if not, use a spudger to pry the hard drive out of the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
