Einleitung
This guide will show you how to remove and replace the hard drive in your Dell Latitude E6510 laptop.
Werkzeuge
-
-

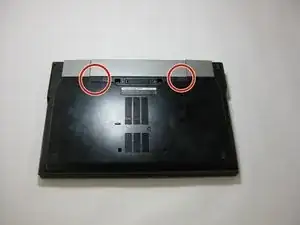

Locate the tabs that lock the battery in place.
-

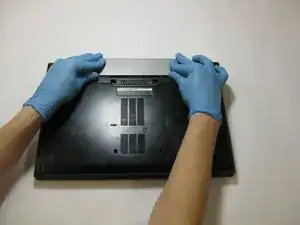

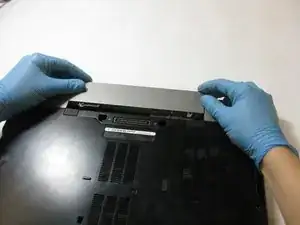

Push tabs towards each other while simultaneously pushing the battery away from the device.
-
-
-

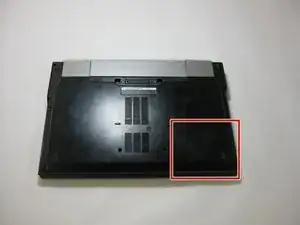

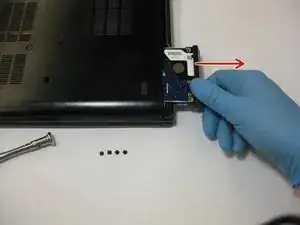

Locate and remove the four 3.2 mm screws that secure the hard drive located in the bottom righthand side of the device, assuming the device is upside down and battery side on top.
-
-
-

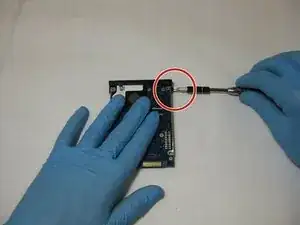

Locate and remove the screw that secures the hard drive to hard drive caddie.
-

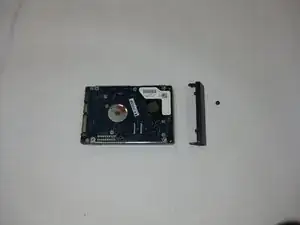

Remove hard drive caddie.
-
Abschluss
To reassemble your device, follow these instructions in reverse order. Make sure to reinsert the hard drive with the hard drive caddie angle such that it will be flush with the device when completely inserted
