Einleitung
If you need to reinstall a new LCD screen, access the screen with this guide. For this guide, you will need a Phillips #0 screwdriver head. You will not need to do any difficult steps, but unscrew screws, and detach wires.
Werkzeuge
-
-
Orient your laptop so that the bottom is facing up towards you.
-

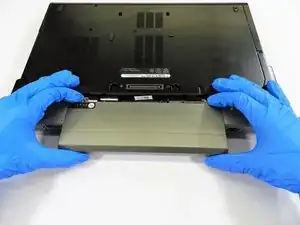

Place your thumbs on the grooved sections above the battery and firmly pull away from each other.
-
Slide the battery out and separate it from the laptop.
-
-
-
Remove the 5 screws from the back panel with a type 0 Philips head.
-

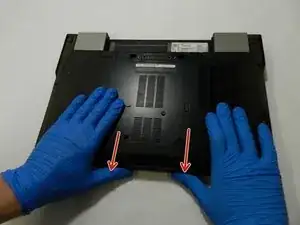

Then pull the panel towards you in a slightly upwards motion.
-

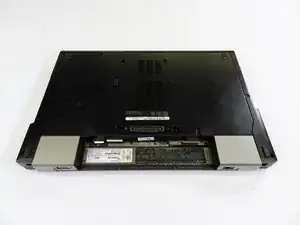

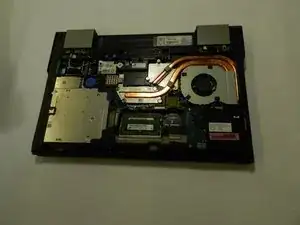

Separate the panel from the laptop.
-
-
-

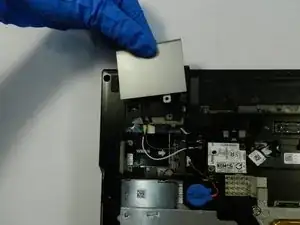

Take the silver panels from both sides of the back of the laptop by removing the screw using a type 0 Philips head.
-

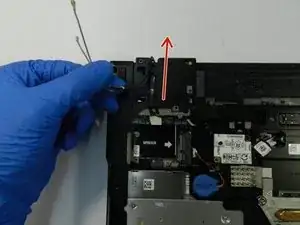

Slide the silver panel away from you to revel some wires.
-

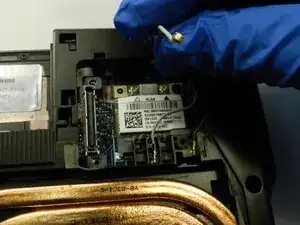

Remove the two wires white and gray by gently pulling up and detaching them.
-
After the wires are detached, gently pull the wires away from you to remove them from the groove they are in.
-
-
-

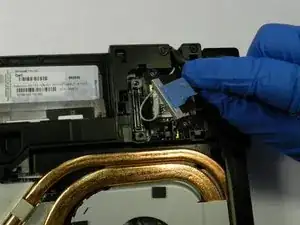

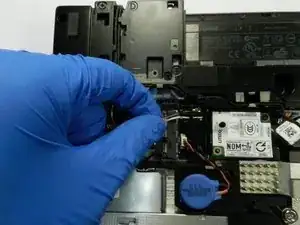

Under the ride silver panel, there is a channel. To disconnect gently use your nail and flick it up and to the right.
-
Once the channel is disconnect, there are two wires. Repeat the same method as the channel to disconnect the wires.
-

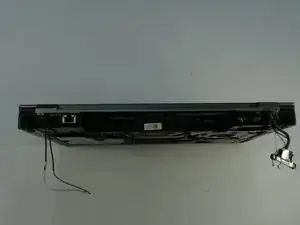

Move the channel and wires out of the groove to remove the screen.
-
-
-

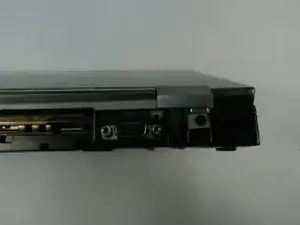

Orient the laptop on its side, prop it slightly open to keep it stable on your desk.
-

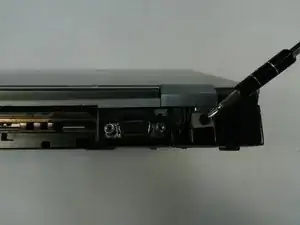

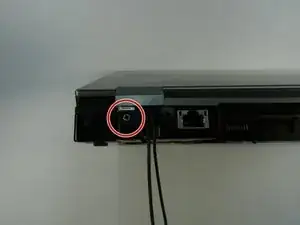

Unscrew the silver screw on the left side using a type 0 Phillip's head.
-
Unscrew the black screw on the right side using a type 0 Philips head.
-
-
-

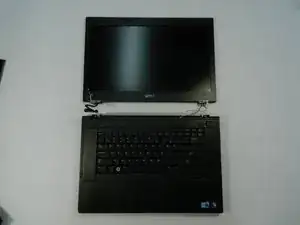

Since the screws and wires are disconnect, the screen is ready to be disconnected also.
-
Gently hold the LCD screen with your pointer fingers on either side.
-

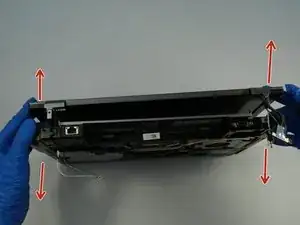

While firmly holding the bottom of the laptop with your thumbs pull the two parts away from each other.
-
To reassemble your device, follow these instructions in reverse order.
