Dell Latitude E6520 CMOS/Coin Cell Battery Replacement

Geschrieben von: Aaron Thomas
  • Kommentare: 0
Dell Latitude E6520 CMOS/Coin Cell Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

4 - 7 Minuten

Einleitung

  1. SwLCyB3QQxmIVA4j
    SwLCyB3QQxmIVA4j
    3pmFfWpKOM51ykZT

    • Remove the ten 8.6 mm JIS #0 screws.

  2. 51dnONcmjmDLqdEj

    • Place fingers underneath cover and pull off the cover.

  3. JTayVEQPZyiVcNSO

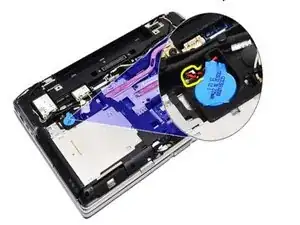

    • Disconnect the coin-cell battery cable from the system board.

  4. b4NNRfOBPn3xyNoT

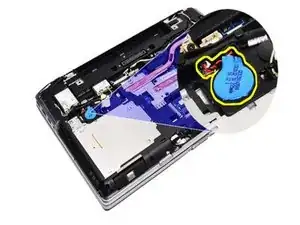

    • Release and remove the coin-cell battery from the computer

Abschluss

With your new CMOS battery, reassemble your device by performing the instructions above in reverse order.
