Dell Latitude E6520 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

2

Zeitaufwand

2 Minuten

Einleitung

The hard drive is held to the laptop by 4 JIS #0 screws with a head size of 4.90 mm and a length of 5.57 mm.

  1. dOrVlABEwp6qUW6Q
    dOrVlABEwp6qUW6Q
    CDYFyBCnZ2n2MWlY

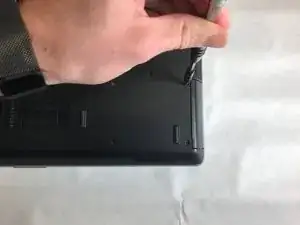

    • Remove the four 5.57 mm JIS #0 screws that hold the LCD screen to the cover.

  2. Vfe1llWwZNfFETKD
    Vfe1llWwZNfFETKD
    FmGnXatNEjRC1NLs

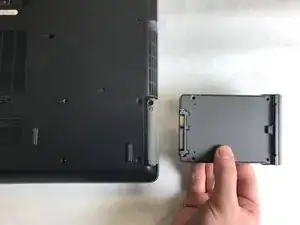

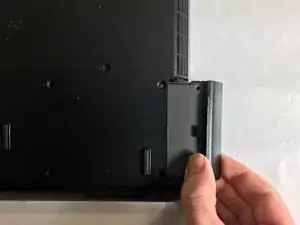

    • Grab the curved edge near screws and pull away from the laptop to remove the hard drive.

Abschluss

To reassemble your device, follow these instructions in reverse order.
