Dell Latitude E6520 Keyboard Replacement

Geschrieben von: Alec Weiss
  • Kommentare: 1
Dell Latitude E6520 Keyboard Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

10 Minuten

Einleitung

The steps in this guide will require a JIS #0 screw driver to remove 6 screws with a head size of approximately 4.36mm and length of 3.63mm.

  1. YODIoScXqNSNrwXN
    YODIoScXqNSNrwXN
    BlXeFUWLxEVNsBuC

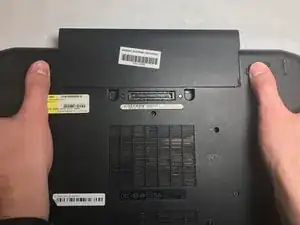

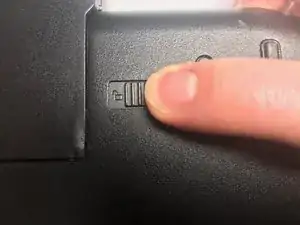

    • With the laptop closed and the bottom side facing up, slide the two battery latches towards the sides of the laptop.

    • When the latches are unlocked, a small logo resembling an open padlock will become visible.

  2. ulTVRdLDX6fbnkmQ
    ulTVRdLDX6fbnkmQ
    dwStqnGOPWep1XGJ

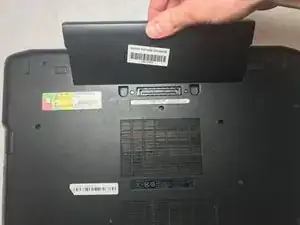

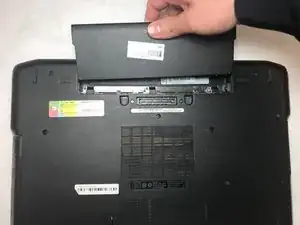

    • Grasp the battery from the top and pull upward.

  3. SwLCyB3QQxmIVA4j
    SwLCyB3QQxmIVA4j
    3pmFfWpKOM51ykZT

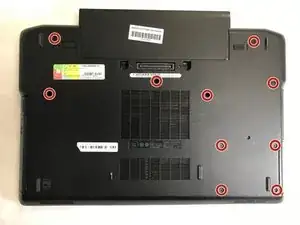

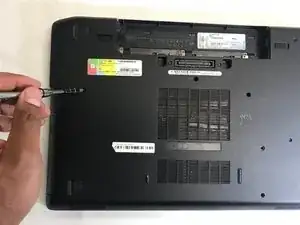

    • Remove the ten 8.6 mm JIS #0 screws.

  4. 51dnONcmjmDLqdEj

    • Place fingers underneath cover and pull off the cover.

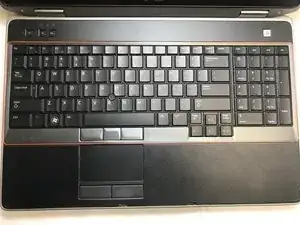

  5. h1oaCYvVbsxjuUVa
    h1oaCYvVbsxjuUVa
    H2BXJINZfNdAy1Wt
    5KC1EKKYJPvCvDAF

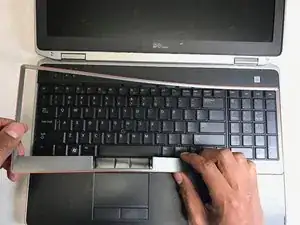

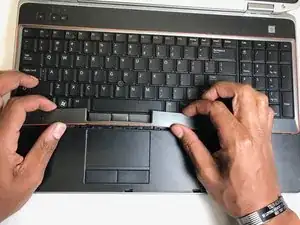

    • Pry off the plastic keyboard trim. It is easiest to start at the bottom of the keyboard.

  6. DZBIA5ZPPwptUhHk
    DZBIA5ZPPwptUhHk
    bTtFcVJiEPsbhqXS

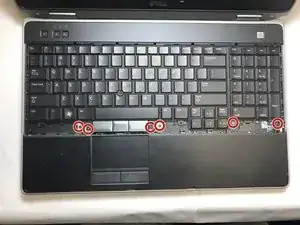

    • Remove the six 3.63 mm JIS #0 screws holding the keyboard in place.

  7. vUOTGEkthFFPPDZW
    vUOTGEkthFFPPDZW
    FKZTmXILVFZUccBN

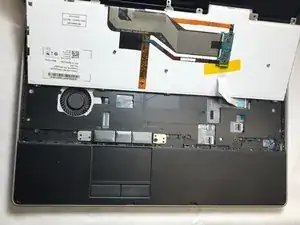

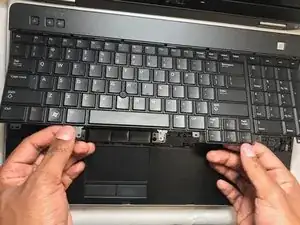

    • Lift the keypad up from the bottom.

    • Rest the keypad on the LCD screen for easy access during the next step.

  8. BPQVX6cEBWBvLx3k
    BPQVX6cEBWBvLx3k
    RjikgB4f6PLR2meC

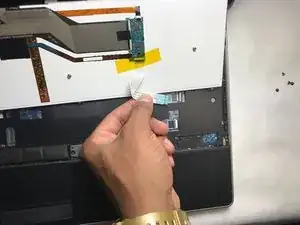

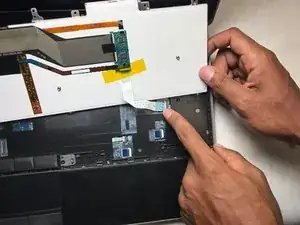

    • Peel back the tape holding the ribbon connector.

    • Disconnect the ribbon and the keyboard will be free from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
