Dell Latitude E6520 LCD Screen Replacement

Geschrieben von: Alec Weiss
  • Kommentare: 0
Dell Latitude E6520 LCD Screen Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

The LCD (liquid crystal display) screen may need to be replaced if it is cracked or to improve resolution.

  1. YODIoScXqNSNrwXN
    YODIoScXqNSNrwXN
    BlXeFUWLxEVNsBuC

    • With the laptop closed and the bottom side facing up, slide the two battery latches towards the sides of the laptop.

    • When the latches are unlocked, a small logo resembling an open padlock will become visible.

  2. ulTVRdLDX6fbnkmQ
    ulTVRdLDX6fbnkmQ
    dwStqnGOPWep1XGJ

    • Grasp the battery from the top and pull upward.

  3. 62STCeMjCh4XXECW

    • Gently pry the protective LCD cover from around the screen. You shouldn't have a problem just using your fingers.

  4. CXWGORrKbvVWIUvv
    CXWGORrKbvVWIUvv
    kXHOoCE2ZlNjr3iP

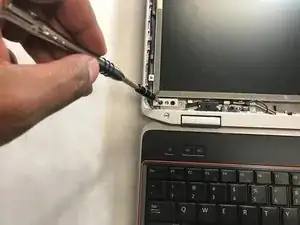

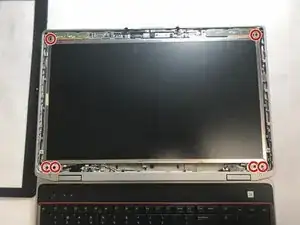

    • Remove the six 5.75 mm JIS #0 screws that hold the LCD screen to the cover.

  5. GBDbiWspsoQcp12C
    GBDbiWspsoQcp12C
    Va6lgIqWjdPe6CqP

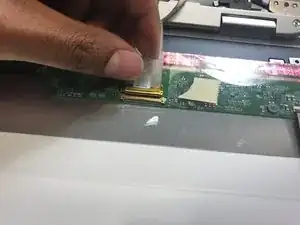

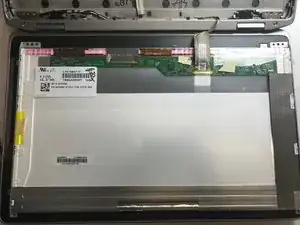

    • Once all the screws have been removed, lay the screen down on the keyboard and disconnect the LCD cable.

Abschluss

To reassemble your device, follow these instructions in reverse order.
