Dell Latitude E6520 WLAN Adaptor Card Replacement

Geschrieben von: Alec Weiss
  • Kommentare: 0
Dell Latitude E6520 WLAN Adaptor Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

5 Minuten

Einleitung

The WLAN Adapter Card is what allows the computer to connect to Wi-Fi.

The WLAN Adapter Card is connected to the laptop by 2 J0 PH screws with a head size of 4.44 mm and a length of 3.67 mm.

  1. YODIoScXqNSNrwXN
    YODIoScXqNSNrwXN
    BlXeFUWLxEVNsBuC

    • With the laptop closed and the bottom side facing up, slide the two battery latches towards the sides of the laptop.

    • When the latches are unlocked, a small logo resembling an open padlock will become visible.

  2. ulTVRdLDX6fbnkmQ
    ulTVRdLDX6fbnkmQ
    dwStqnGOPWep1XGJ

    • Grasp the battery from the top and pull upward.

  3. SwLCyB3QQxmIVA4j
    SwLCyB3QQxmIVA4j
    3pmFfWpKOM51ykZT

    • Remove the ten 8.6 mm JIS #0 screws.

  4. 51dnONcmjmDLqdEj

    • Place fingers underneath cover and pull off the cover.

  5. DBM4Z5YiiFHxPJvA

    • Gently pull the two wires connected to the WLAN Adapter Card.

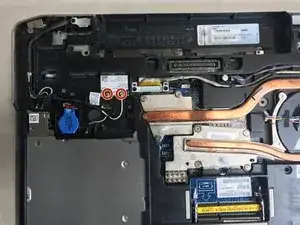

  6. yEnAVn2XhxSVqQFF
    yEnAVn2XhxSVqQFF
    QhvmWmlRVW6wVumq

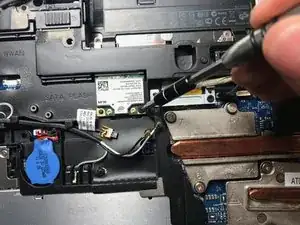

    • Remove the two electrode connectors.

    • Remove the single 3.67 mm JIS #0 screw that holds the WLAN Adapter Card to the laptop.

    • The WLAN Adapter Card will pop up once the screws are taken out.

  7. mroGEbNQ6SqpeRNd
    mroGEbNQ6SqpeRNd
    kTBVZkKCeBoynfAn

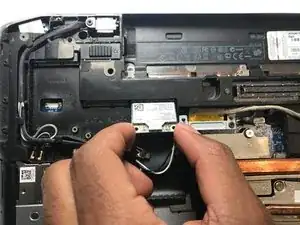

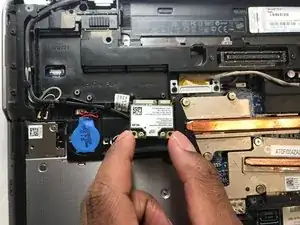

    • Pull WLAN Adapter Card to remove it from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
