Dell Latitude E6530 Hard Drive Replacement

Geschrieben von: Amelia Jochem
  • Kommentare: 1
Dell Latitude E6530 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

5 Minuten

Einleitung

This guide will walk users through replacing the Dell Latitude E6530 Hard Drive Port. Refer to the troubleshooting page before begining replacement in order to clarify and identify the problem.

  1. JdCSFt3hLU2vGmkW

    • Flip the computer over so that the bottom panel is facing you.

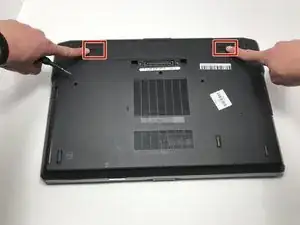

  2. le1kqKsHaRyrYnMM
    le1kqKsHaRyrYnMM

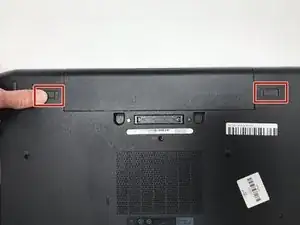

    a1Zi1dCNAlOST1D5

    • Slide the switches away from each other to release the battery.

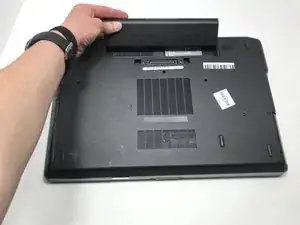

  3. HfYGBrnYZCoq5SSV
    HfYGBrnYZCoq5SSV
    AFupVLLhkQ2WUjEW

    • Using your hands, gently remove the battery from the device.

  4. tsqSp5SOMVJYDYJH
    tsqSp5SOMVJYDYJH

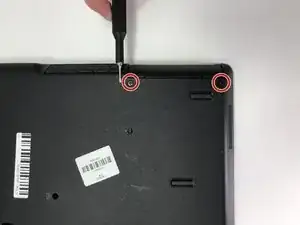

    woQnBYwHrDtFRadu

    • Using a Phillips #00 screwdriver, unscrew the two screws.

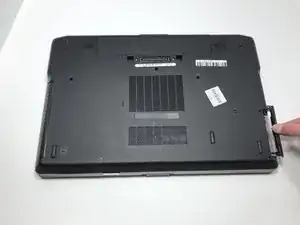

  5. dCXS3UJIYYFmH4Wu
    dCXS3UJIYYFmH4Wu

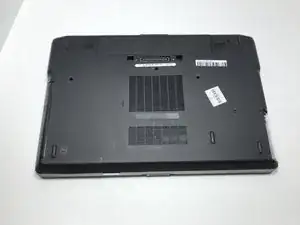

    TwgcXsqhVEOaiPpf

    • Gently remove the hard drive.

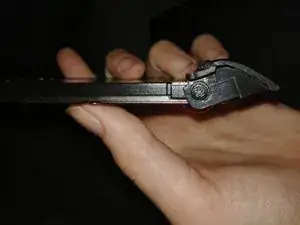

  6. ZaofnY6Hj2PC6QZT

    • Undo the Phillips #1 screw keeping the drive in the bracket.

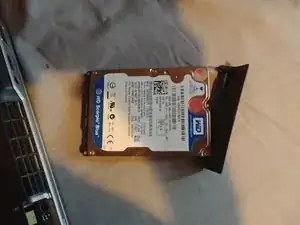

  7. oGxQQnfPeZquXQcQ

    • Remove the drive from the bracket,

Abschluss

To reassemble your device, follow these instructions in reverse order. Refer to the troubleshooting guide and additional links for more information if issue persists.

Tinte & Feder

Amelia Jochem

Mitglied seit: 16/01/20

246 Reputation

Ein Kommentar

There’s a missing step here. There’s another screw you’re supposed to undo to remove the drive.

Ella -
