Dell Latitude E6530 Motherboard Replacement

Geschrieben von: Ella

Kommentare: 4

Dell Latitude E6530 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

20 Minuten - 2 Stunden

Einleitung

Werkzeuge

Ersatzteile

Schritt 10

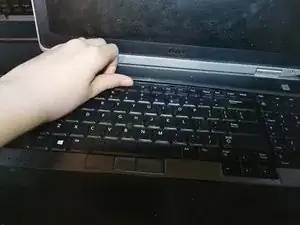

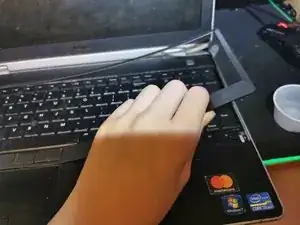

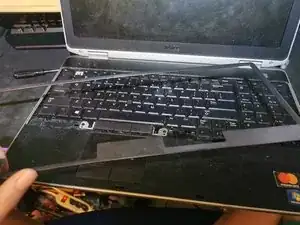

Use your fingernail or opening tool to remove the keyboard bezel.

Schritt 12

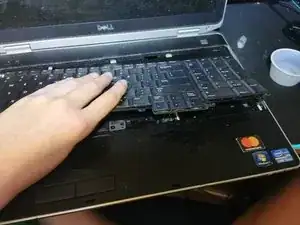

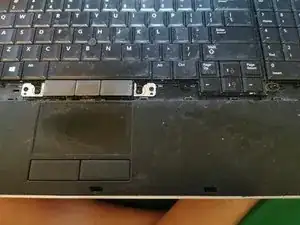

Carefully remove the keyboard.
Do not lift up the keyboard too much, as it is still attached via a ribbon cable.

Schritt 13

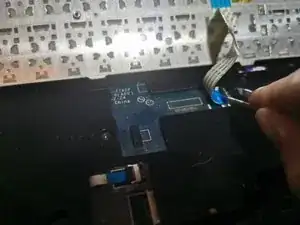

Use a pair of tweezers or your fingernail to lift up the ribbon cable lock.

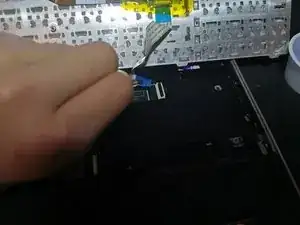

Use a pair of tweezers or your finger to remove the keyboard ribbon cable

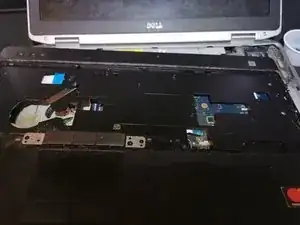

Set the keyboard aside.

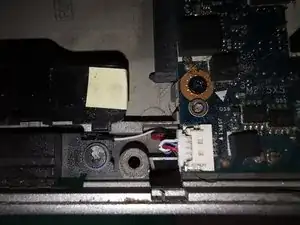

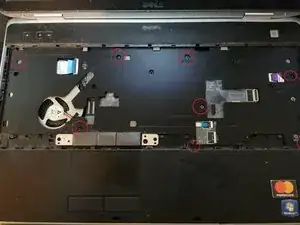

There are 2 additional screws at the top, that you have to unscrew. One is on the top right corner, behind the white screen cable. The other one is just down right from the top left circle, in the black hole.

Ales Kolenc -

Schritt 15

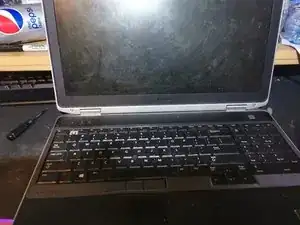

Flip over and open the laptop.

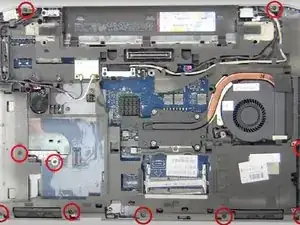

Remove the 8 Phillips #00 screws,

Schritt 16

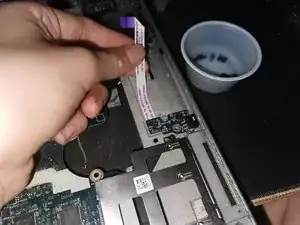

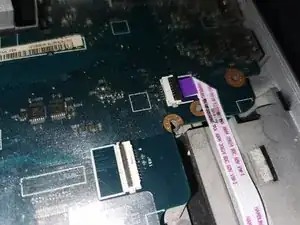

Use a pair of tweezers to remove the trackpad ribbon cable.

Schritt 17

Use a pair of tweezers to remove the ribbon cable for the lights and buttons.

Schritt 18

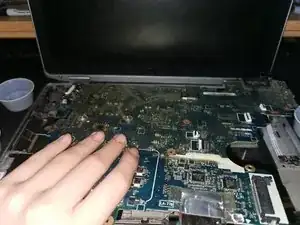

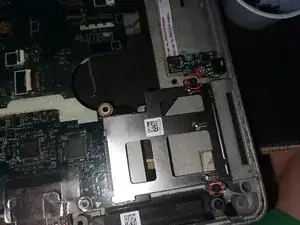

Lift off the laptop's palmrest.

Schritt 19

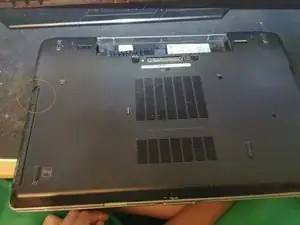

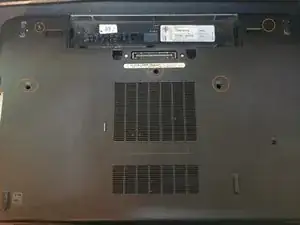

Close and flip over the laptop.

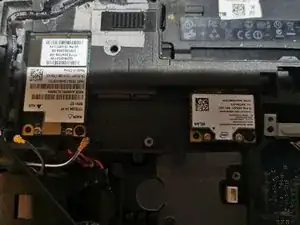

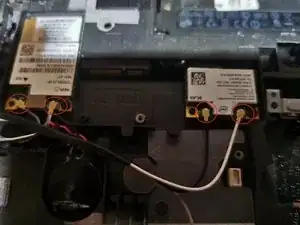

Remove the antenna cables and screws from the Wi-Fi card and the cellular card.

Schritt 20

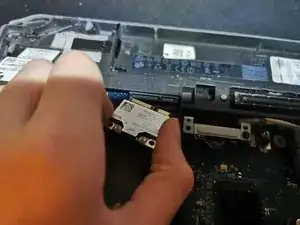

Remove the Wi-Fi and cellular cards.

Schritt 21

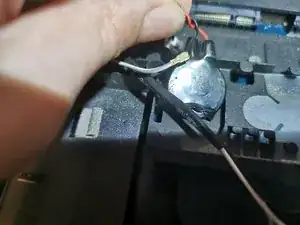

Disconnect and remove the CMOS battery.

Schritt 22

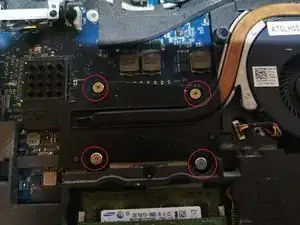

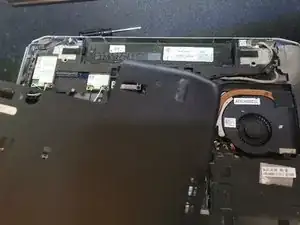

Remove the 4 heatsink screws.

If you have an additional graphic card, than there is an another heatsink nearby. You have to unscrew 3 screws there.

Ales Kolenc -

Schritt 23

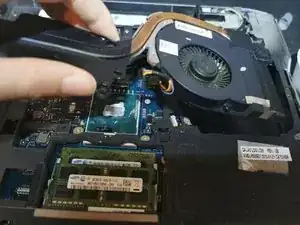

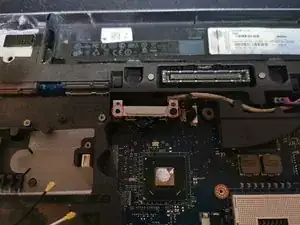

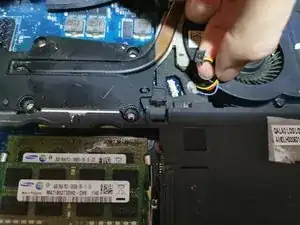

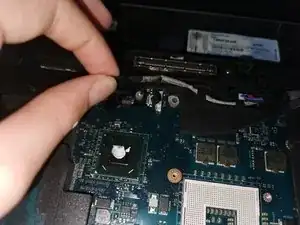

Disconnect and remove the heatsink.
Make sure you have thermal paste before doing this! You will need to reapply the CPU's thermal paste.

Schritt 24

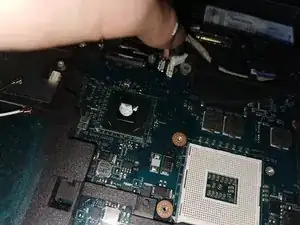

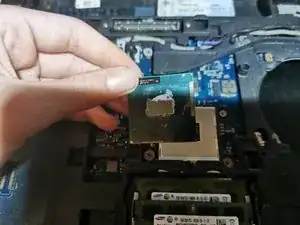

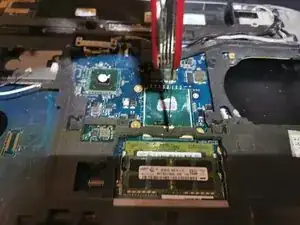

Use a knife or flathead screwdriver to turn the CPU lock counter-clockwise.
Remember to turn the CPU lock clockwise when reassembling the laptop! If you don't, the system will not turn on.
