Dell Latitude E6540 Base Cover and Base Cover Caps Replacement

Geschrieben von: Hezekiah Brown
  • Kommentare: 0
Dell Latitude E6540 Base Cover and Base Cover Caps Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

2 - 4 Minuten

Einleitung

  1. VyRq2CXDCiCnbICg

    • Before performing this task, make sure you turn off the computer and disconnect every external drive from it, whether it's a USB drive, power charger, or wireless adapter.

    • Remove the screws that secure the base cover to the computer.

  2. FhYUcwYeRXKtMnOp

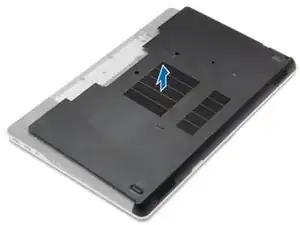

    • Lift the base cover and remove it from the computer.

    • Place the base cover to align with the screw holes on the computer.

    • Tighten the screws to secure the base cover to the computer.

  5. N5cA3LsAT1RP4IH1

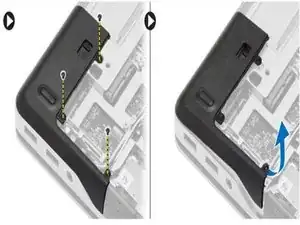

    • You don't necessarily have to replace the base cover caps if you are just replacing the base cover itself.

    • Remove the screws that secure the left base corner cap, lift and remove it from the computer.

  6. RQVlcU46fDwW1KA2

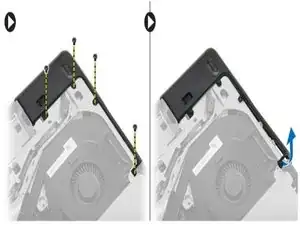

    • Remove the screws that secure the right base corner cap, lift and remove it from the computer.

    • Place the left and right base corner caps to align with the screw holes on the computer.

    • Tighten the screws to secure the base corner caps to the computer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
