Dell Latitude E7240 Ultrabook mSATA SSD Replacement

Geschrieben von: Jordon Dozier
  • Kommentare: 1
Dell Latitude E7240 Ultrabook mSATA SSD Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

10 Minuten

Einleitung

  1. Y31JZTcDCYQcWUwU
    Y31JZTcDCYQcWUwU
    jTHKEwWFR5ErgSUW

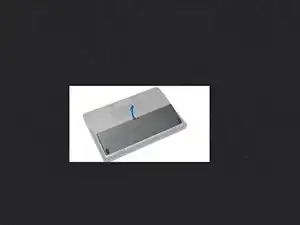

    • Slide the release latch to unlock the battery.

    • Lift the battery from the computer.

  2. xmZobjimyRfPMknE
    xmZobjimyRfPMknE
    Yw3x15RBcnl2Idaf

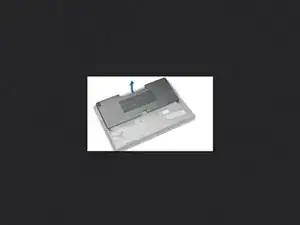

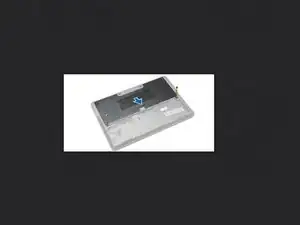

    • Remove battery.

    • Remove the screws that secure the base cover to the computer.

    • Lift the base cover to remove it from the computer.

    Two screws need to be removed. Before lifting, slide the base cover slightly towards the battery to release it.

    hackerb9 -

  3. yXTLmqu1QiMFjafN

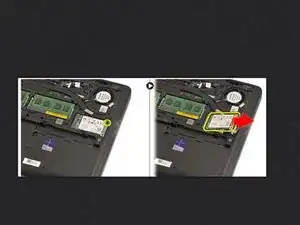

    • To remove the mSATA SSD card: Remove the screw that secures the mSATA SSD card to the computer.

    • Disconnect the mSATA SSD card from the connector on the system board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
