Dell Latitude E7440 Hard Drive Replacement

Geschrieben von: Akash Kedia
  • Kommentare: 7
Dell Latitude E7440 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

15 Minuten

Einleitung

If you are running low on storage space or your hard drive has failed, it is likely time to replace it. Replacing your hard drive (Latitude E7440 base models contain SSHDs) with a faster SSD will greatly improve the overall speed of your device as well. This guide will outline the steps on how to replace your drive.

  1. qcZH1Ro3r5iIvGUO

    • Power off your laptop before starting.

    • Flip the device over so that the vents on the bottom are facing away from you.

  2. tryHCSpQL5UUpqLw
    tryHCSpQL5UUpqLw
    4h2yh162QmWaf1xJ
    xOhOen65DPcJY4au

    • Place your finger on the latch located in the center of the laptop.

    • Slide the latch to the right, applying enough force to reveal a red indicator.

    • You will hear a soft click when the latch has been disengaged.

  3. MtHoVknvkxRhW4KH

    • Lift the battery by the top, away from the laptop body.

  4. R53sWEgLCpOr6LLB
    R53sWEgLCpOr6LLB
    EQUijeLkaOSTBymI
    OvtSex3p6gmhuEEa

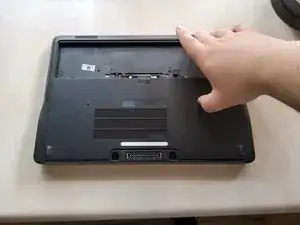

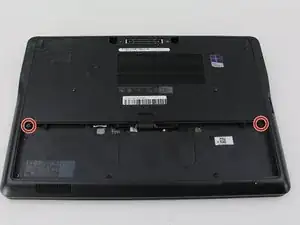

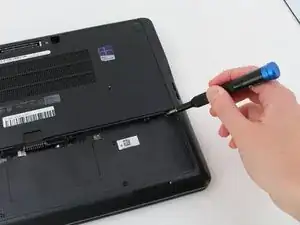

    • Remove two M2 x 3mm Phillips #0 screws from the base cover.

    • Slide the service tray using the middle stand offs to then be able to lift the tray off.

    It is very important to add pictures from the cmos battery instructions on ifixit for this laptop before Step 5, as it gives the very important instruction to SLIDE DOWN the unscrewed cover towards the battery. I nearly damaged it by trying to pop it off before thinking to look at a different set of instructions to make sure I wasn’t going to break the back panel.

    Petie Martin -

    Thank you so much for this comment. I was doing the same thing trying to unsuccessfully pull off the cover but then saw that there was a comment. If somebody who holds themself out to be knowledgeable does not bother to go step by step it can cause a problem. Thanks again.

    Calvin Jordan -

  5. FfWajd5exIZlthO3
    FfWajd5exIZlthO3
    gwFL3vMBIIrOs1KA

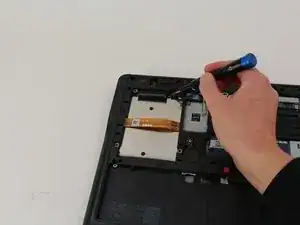

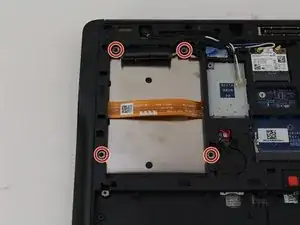

    • Remove four M2 x 3mm Phillips #0 screws from the hard drive cage.

    • Remove the hard drive cage by lifting it off the laptop.

    • The hard drive cage is not pictured here, but the screws will be in these locations.

  6. RvUJZVmiZRN6Z5Bc
    RvUJZVmiZRN6Z5Bc
    oa1vNODdMVNUPxCy

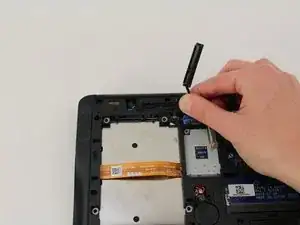

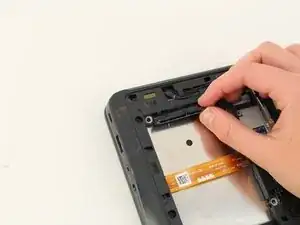

    • Disconnect the hard drive connector from the top of the drive.

    • iFixit's device came without a hard drive to picture. Your device will have a component connected to the thin, black connector.

    • The hard drive connector can be removed from the laptop body to make replacement easier.

    What is the max thickness for the SSD? Thanks.

    Philip Huffman -

    If you are going to bother to show how to remove the HD you should do it with an HD installed.

    Calvin Jordan -

    Mine has one, but it’s also a poor candidate to show how not having anything but the drive cable.

    Nick -

Abschluss

To reassemble your device, follow these instructions in reverse order.
