Dell Latitude E7470 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

17

Zeitaufwand

20 - 40 Minuten

Einleitung

This guide will cover the replacement of the motherboard for the Dell Latitude E7470 laptop. The motherboard is the core of the system and as such can be the cause of a variety of issues; replacement could be the solution to a number of problems with a computer. Note that this replacement will require almost full disassembly of the laptop excluding the monitor so take care in sorting your parts and follow all steps carefully.

  1. jyZZPZxH5JMsOUCb

    • Remove the eight 4 mm screws on the back cover using a Phillips #0 screwdriver.

    After unscrewing the 8 screws, they stay on the back cover.

    Victor Ashiedu -

  2. 3yAeDmqHgF3kPNvM

    • Use the pull tab on the battery connector to lift the connector straight up off its socket on the motherboard, disconnecting it.

    Personally, I would remove the battery as the first stage battery should be disconnected before any work is completed.

    Richard Holmes -

  3. NuiTeIZQJXECEFta
    NuiTeIZQJXECEFta
    2i5XNthrPAhNwteE

    • Remove the single 4 mm Phillips screw securing the bottom left corner of the battery.

    • If you are removing an extended capacity battery, remove the Phillips screw securing the bottom right corner of the battery.

    My laptop had 2 screws holding the battery. I am not sure why. It may be useful to check whether yours has 2 as well. Unlike the laptop’s back cover, after unscrewing the screws on the battery, you have to remove the screws.

    Victor Ashiedu -

  4. pumoahILSLPQnvYC

    • Remove the battery from the laptop.

  5. HLsjwYNE41UbS1jP
    HLsjwYNE41UbS1jP
    BEV1ZZXcWJ2a4Bf5

    • Unplug the four pin speaker connector from the motherboard.

  6. PZelIVeIrSDjoMRi
    PZelIVeIrSDjoMRi
    LIEZNcefSDnn4WiH

    • De-route the speaker wire harness from the guide rails.

  7. 5GYvAtXEqfhrwI1A
    5GYvAtXEqfhrwI1A
    XMH1ObEAHGnnHOx6
    pikjOGwZcyiBsEPP

    • Use a Phillips #0 screwdriver to remove the left and right mouse button assembly screws.

    • This allows you to slightly lift the assembly and gain full access to the wire harness that links the left and right speaker units. You do not need to fully remove the button assembly.

  8. SGspWVtSIlgtOmX5
    SGspWVtSIlgtOmX5
    EHkowrj2GrqKb6EV
    WtOKPGe2ALBeo32D

    • Starting with the left speaker (your right), carefully lift the units away and de-route the wire harness linking them.

    • Take note of the soft boots that hold each speaker in place. They should lift freely away, but if needed you may wedge them loose by hand or with your spudger.

  9. lkIBwBsQyPqQPYxO
    lkIBwBsQyPqQPYxO
    m6rUwOkYcMBOauMv

    • Use a halberd spudger and your fingers to detach two wires from the Wi-Fi card.

  10. ayHm1kYaMoGFDWQH

    • Remove the single screw from the Wi-Fi card using a Phillips #0 screwdriver.

  11. gOFEGluAZKfrMGrd

    • Use an iFixit opening tool and your fingers to pull the Wi-Fi card out of its socket.

  12. yTL46IdPIOcZSEkI
    yTL46IdPIOcZSEkI
    Ljd5xBrW35iUKGui
    UI5sOCWZSDVgvMLU

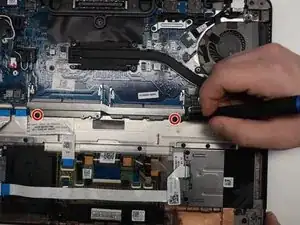

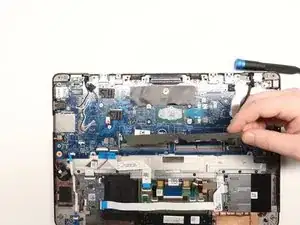

    • Remove the RAM sticks by pulling the holding clips in opposite directions, then pull the sticks straight out.

    • Remove the RAM housing by unscrewing the two 2 mm screws using a Phillips #0 screwdriver.

    • Lift the metal housing from the motherboard.

  13. WxARDGnc6eUMCSfe
    WxARDGnc6eUMCSfe
    XdK5SVmfI2YXNjKG

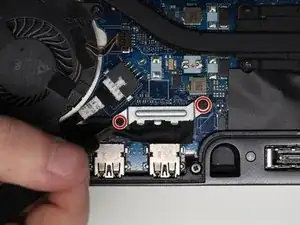

    • Remove the two 2 mm screws using a Phillips #0 screwdriver.

    • Remove the metal bracket.

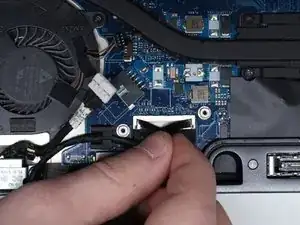

    • Use your fingers to pull the plastic tab on the LCD connector straight up.

    • Remove the charge port connector by pulling straight out from the connector housing.

  14. HEUIoxJN2n1Hhmnc
    HEUIoxJN2n1Hhmnc
    OQhqEmKaAN4FaJIi
    nUMsXcH1lZYaysJb

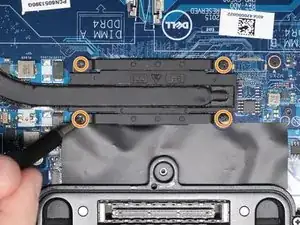

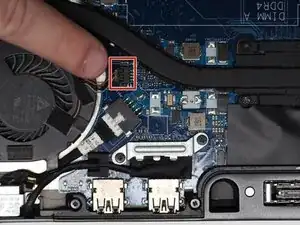

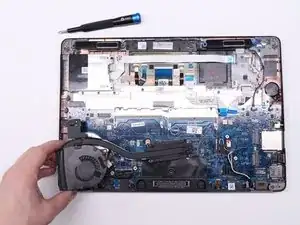

    • Unplug the fan's power connector.

    • Remove the four 2 mm screws holding in the heat sink using a Phillips #0 screwdriver.

    • Carefully lift the entire laptop cooling assembly straight up from the motherboard.

  15. lotJT1ENxSV1c1Rj
    lotJT1ENxSV1c1Rj
    Ry2RgisgXTGHpwMC
    TEFJ6LdAMhZkFcXU

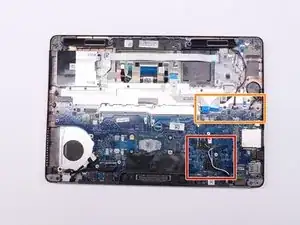

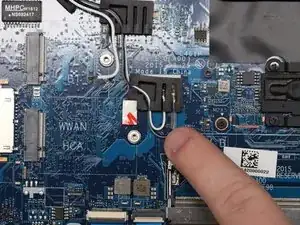

    • Remove the antenna wires from the rubber housing.

    • Remove all wire connections on the motherboard.

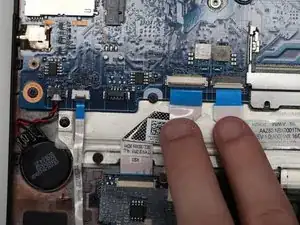

    • The 'flat' wires have a different connector which will require you to flip a tab up that anchors the wire. Then you can pull the wire straight out parallel to the motherboard.

  16. H3f5y2QTZw1Tv1sI
    H3f5y2QTZw1Tv1sI
    UMGrCNaGpUvhjWMN
    4VObM2cu2LyWW1cU

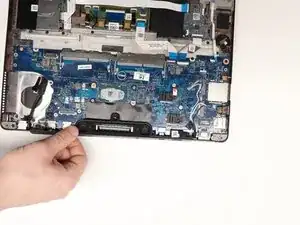

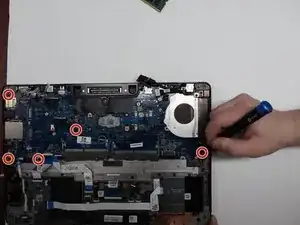

    • Remove all 2mm screws anchoring the motherboard to the laptop casing using a Phillips #0 screwdriver.

    • Remove the four 2 mm screws on the from back plate around the docking port using a Phillips #0 screwdriver.

    • Lift the metal bracket off of the laptop.

  17. YKteasLoZOEVdv1k
    YKteasLoZOEVdv1k
    S4MbrCZWs5c1yUbx

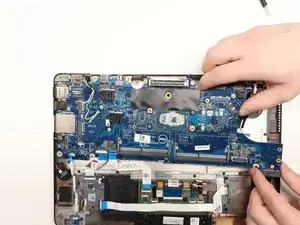

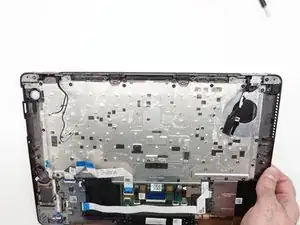

    • Carefully lift the motherboard straight up from the laptop.

    • If you feel any resistance, check that there are not any screws or connections that you may have missed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
