Dell Latitude E7470 Network Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

20 - 30 Minuten

Einleitung

Use this guide to replace a faulty or broken ethernet/network card in your Dell Latitude E7470.

The network card might not be vital to the function of a laptop, but it is vital part for you to be connection to basically anything you need to do in your life on the computer.

Unfortunately at this time iFixit doesn't have a troubleshooting guide for the Dell LatitudeE7470. I would recommend before completely replacing you look up a troubleshooting guide to make sure that's what's wrong with it.

Be sure to back up your hard drive before replacing it so you don’t lose any data while you’re doing the replacement. Make sure to power off your laptop completely and disconnect from any external power source prior to beginning the process.

  1. jyZZPZxH5JMsOUCb

    • Remove the eight 4 mm screws on the back cover using a Phillips #0 screwdriver.

    After unscrewing the 8 screws, they stay on the back cover.

    Victor Ashiedu -

  2. 3yAeDmqHgF3kPNvM

    • Use the pull tab on the battery connector to lift the connector straight up off its socket on the motherboard, disconnecting it.

    Personally, I would remove the battery as the first stage battery should be disconnected before any work is completed.

    Richard Holmes -

  3. NuiTeIZQJXECEFta
    NuiTeIZQJXECEFta
    2i5XNthrPAhNwteE

    • Remove the single 4 mm Phillips screw securing the bottom left corner of the battery.

    • If you are removing an extended capacity battery, remove the Phillips screw securing the bottom right corner of the battery.

    My laptop had 2 screws holding the battery. I am not sure why. It may be useful to check whether yours has 2 as well. Unlike the laptop’s back cover, after unscrewing the screws on the battery, you have to remove the screws.

    Victor Ashiedu -

  4. pumoahILSLPQnvYC

    • Remove the battery from the laptop.

  5. lkIBwBsQyPqQPYxO
    lkIBwBsQyPqQPYxO
    m6rUwOkYcMBOauMv

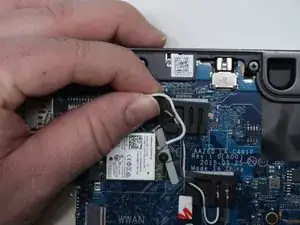

    • Use a halberd spudger and your fingers to detach two wires from the Wi-Fi card.

  6. ayHm1kYaMoGFDWQH

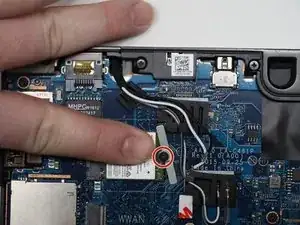

    • Remove the single screw from the Wi-Fi card using a Phillips #0 screwdriver.

  7. gOFEGluAZKfrMGrd

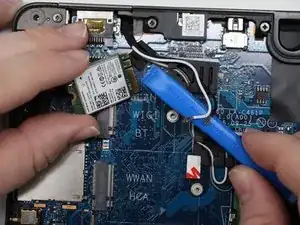

    • Use an iFixit opening tool and your fingers to pull the Wi-Fi card out of its socket.

Abschluss

To reassemble your device, follow these instructions in reverse order.
