Dell Netbook e6400 Backup Battery Replacement

Geschrieben von: Smilzo
  • Kommentare: 0
Dell Netbook e6400 Backup Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

15 Minuten

Einleitung

  1. uagaaetJX33tATMT

    • remove battery

  2. RnnYZDIvkvS4LnNI

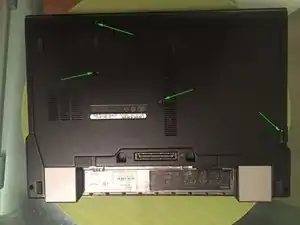

    • Remove the screws marked by the green arrows

    • Slide the protection on the opposite side of the battery to release it

  3. Nw15vDivhyD5GDgG

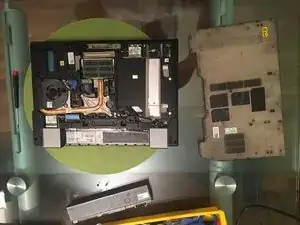

    • Remove lower protection

  4. AdMvXXIUrX1TgSUM
    AdMvXXIUrX1TgSUM
    ufAwvaYuWHtFEWtQ
    BquFBakkDq6REgPs

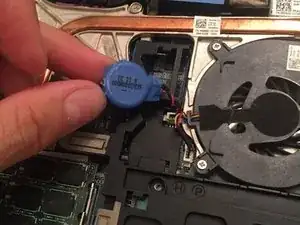

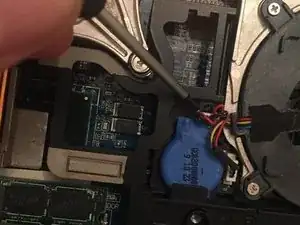

    • Unclip the battery connector

    • Remove the battery and replace it with a new one

Abschluss

To reassemble the device, follow these instructions in reverse order.
