Dell OptiPlex GX260 Hard Drive Replacement

Geschrieben von: Kevin Schapansky
  • Kommentare: 7
Dell OptiPlex GX260 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

10 Minuten

Einleitung

  1. xo11ihLhRiR3lR6J
    xo11ihLhRiR3lR6J
    fOFlJOfxZjuiQPy2

    • Lay the Dell Optiplex GX260 down on a clean flat surface with the rear towards you.

    • Push the oval shaped buttons located on the top and bottom of the PC simultaneously and lift the case straight up.

    • Note: Some force may be required to push in the oval buttons open the PC case.

    cool de faires des sites comme ca :)

    baptiste Prando -

    Excellent - Only comment - do the the green brackets come with a new hard drive or should I leave them inside the case for the next owner - Removing to donate to recycling

    sheila_jones -

    I got this yesterday....up and running now....how on earth do I MERGE the 18GB partition D with C....there is just NO option there.

    Elvis 1357 -

    I got this yesterday....up and running now....how on earth do I MERGE the 18GB partition D with C....there is just NO option there.

    Also, want to add another HD....but, there are no cables at all?

    Elvis 1357 -

  2. sgdGB1A2MrQqIxf1
    sgdGB1A2MrQqIxf1
    xyCWVRa5oALABDCK
    CDjRdLiRb3ojNmQe

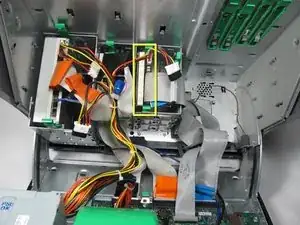

    • Identify the Hard Drive in the case.

    • If there is more than one hard drive installed the process is the same for each hard drive.

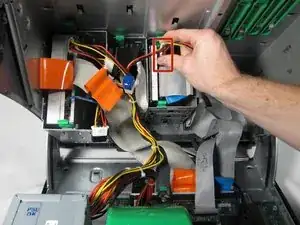

    • Remove the power cable from the hard drive by squeezing the side tabs in and pulling gently.

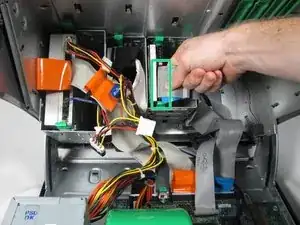

    • Remove the IDE cable from the hard drive by gently pulling the ribbon cable out.

  3. NJoxSlOeO1x6nyII

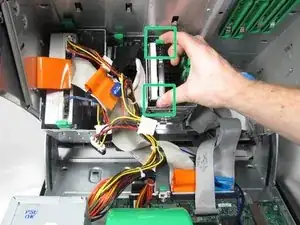

    • Pinch the two green tabs inwards to release the hard drive and lift it out.

    buenos dias como se llama las pieza de color verde que trai el disco duro que trai en los lados

    Pedro Eduardo Garza Alanis -

Abschluss

To reassemble your device, follow these instructions in reverse order.
