Dell OptiPlex GX260 Optical Drive Replacement

Geschrieben von: Kevin Schapansky
  • Kommentare: 4
Dell OptiPlex GX260 Optical Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

5 - 7 Minuten

Einleitung

  1. xo11ihLhRiR3lR6J
    xo11ihLhRiR3lR6J
    fOFlJOfxZjuiQPy2

    • Lay the Dell Optiplex GX260 down on a clean flat surface with the rear towards you.

    • Push the oval shaped buttons located on the top and bottom of the PC simultaneously and lift the case straight up.

    • Note: Some force may be required to push in the oval buttons open the PC case.

    cool de faires des sites comme ca :)

    baptiste Prando -

    Excellent - Only comment - do the the green brackets come with a new hard drive or should I leave them inside the case for the next owner - Removing to donate to recycling

    sheila_jones -

    I got this yesterday....up and running now....how on earth do I MERGE the 18GB partition D with C....there is just NO option there.

    Elvis 1357 -

    I got this yesterday....up and running now....how on earth do I MERGE the 18GB partition D with C....there is just NO option there.

    Also, want to add another HD....but, there are no cables at all?

    Elvis 1357 -

  2. cVBGisWB22DUo3lp
    cVBGisWB22DUo3lp
    VPBnS4dYCqgFT1Bw
    GQVhi6SjxILq5kNt

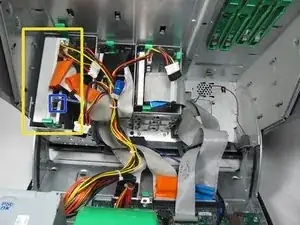

    • Identify the optical drive in the case.

    • Remove the analog audio cable from the optical drive.

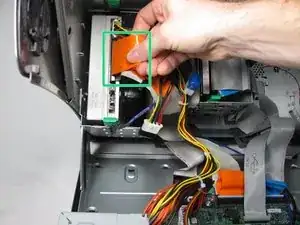

    • Remove the IDE cable form the optical drive by pulling straight up on the orange plastic tab..

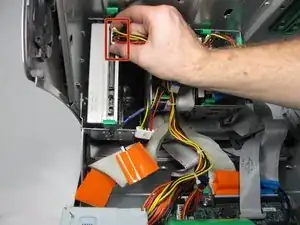

    • Remove the power cable from the optical drive.

  3. WQ2LQanXW4sr5RY2

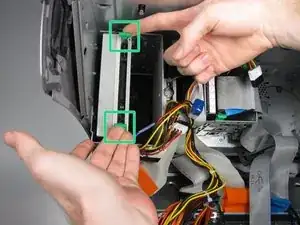

    • Push the two green tabs toward each other to release the optical drive and lift it out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
