Lay the Dell Optiplex GX260 down on a clean flat surface with the rear towards you.
-

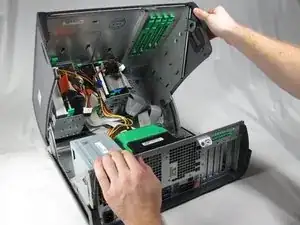

Push the oval shaped buttons located on the top and bottom of the PC simultaneously and lift the case straight up.
-
-
-

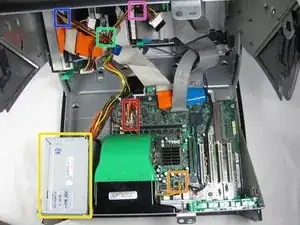

Locate the power supply in the case.
-
Disconnect the AXT power cable to the motherboard.
-
Disconnect the P4 12 volt power cable from the motherboard.
-
Disconnect the power cable from the optical drive.
-
Disconnect the floppy drive power cable.
-
Disconnect the hard drive power cable.
-
-
-

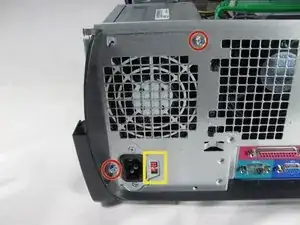

Remove the two Phillip screws holding the power supply into the the case and lift the power supply out.
-
When installing a new power supply ensure that the voltage selector is correctly set before you connect the mains cable.
-
-
-

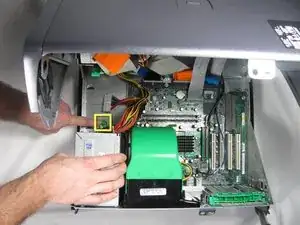

Push down on the green tab with one hand.
-
With your other hand, grip the top of the power supply and pull back and up to remove from the case.
-
To reassemble your device, follow these instructions in reverse order.
Ein Kommentar
In mine, the power supply was much longer due to a fan located on the front end. Same basic disassembly, however. There was a green tab at the front and it was difficult, but the power supply (with effort) did slide forward and out.
