Dell Optiplex 330 SFF Power Supply Replacement

Geschrieben von: Oli
  • Kommentare: 2
Dell Optiplex 330 SFF Power Supply Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 - 15 Minuten

Einleitung

This shows you how to replace a blown power supply on a Dell Optiplex 330 small form factor PC. Power supplies are normally the first part to go on a desktop and will result in a solid amber power light illuminated on a Dell desktop.

  1. jVQf5phsLuIcQYvS
    jVQf5phsLuIcQYvS
    XBLySCBWpFumCPn4
    osT5FIAyFZD41lGD

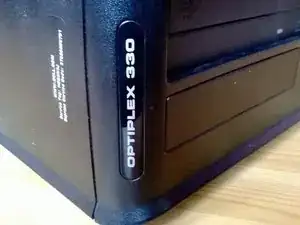

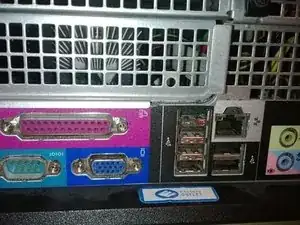

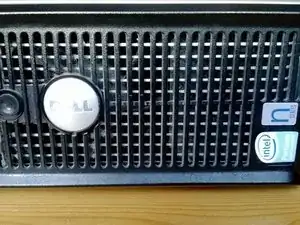

    • Before you start make sure that all of the leads have been disconnected from the computer.

    • It is strongly recommended that you leave the computer off for at least 15 minutes to allow the components to cool down.

    • You should also ground yourself before starting by using an anti-static band or touching a metal object connected to the ground. This prevents static build up which can destroy sensitive components.

  2. pFiSsnkYGKdbLxXg
    pFiSsnkYGKdbLxXg
    OvuBe6LMtPUmdqQQ
    PoinmJtD4BicjhFi

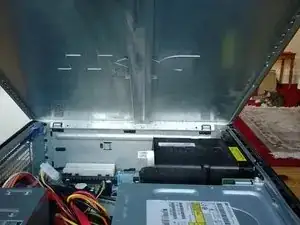

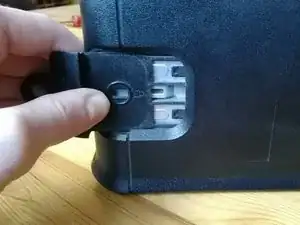

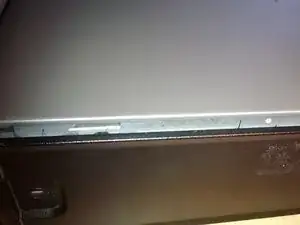

    • Round the back of the computer next to the power supply you will find a latch.

    • In order to release the case pull this latch straight back - this should make the back of the case pop up.

    • You can now just lift the case up and away from the computer.

  3. BN3ZCWaEsiOYbTPL
    BN3ZCWaEsiOYbTPL
    Lw3q1PntSEpknQYA

    • Before you can remove the power supply you first have to remove the optical drive.

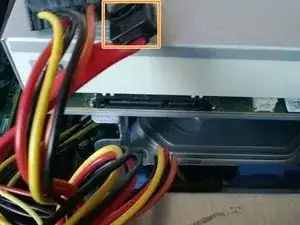

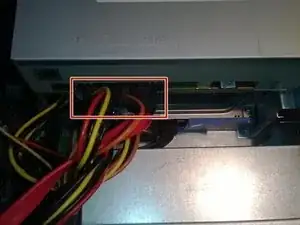

    • First find the two cables going into the optical drive - they are shown in the first picture.

    • Gently pull both of them out - one of the cables might have a little latch that you have to press in order to release it from the optical drive.

  4. YoaHadd3fYHkpUCW
    YoaHadd3fYHkpUCW
    iepBduvsGTyKbEfD
    ISLEWYK2mBn2HCVV

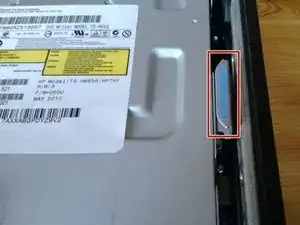

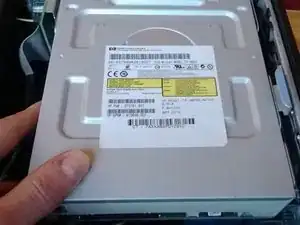

    • To remove the optical drive first find the little blue latch located next to the optical drive.

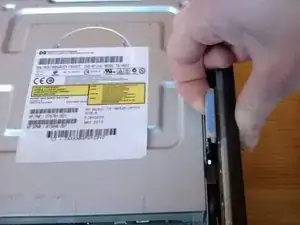

    • Pull the latch straight up - at the same time pull the optical drive back. It should now be easy to remove it from the computer.

  5. BShgiBTgcqbofwQu
    BShgiBTgcqbofwQu
    s5beMJIpwkT1YVRs
    UFHGG3HXFNZYBfBW

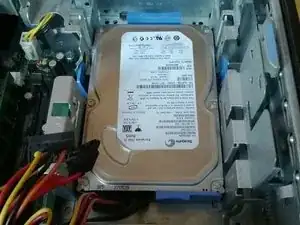

    • It should now look like the first picture with the optical drive removed.

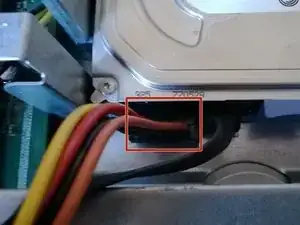

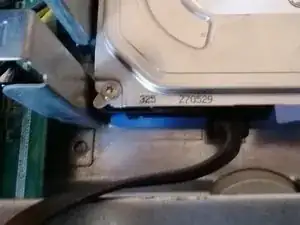

    • You now need to remove the power cable from the hard drive.

    • Gently pull the cable out of the back of the hard drive.

  6. XOWNXBlbEeXtPUcH
    XOWNXBlbEeXtPUcH
    deMmEk6cv5ZRV6L3
    GvlOORXE4JSQYeXg

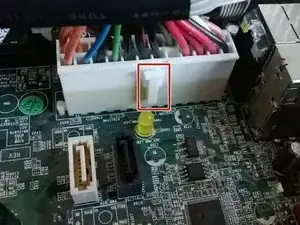

    • You now need to remove the power cable connected to the motherboard.

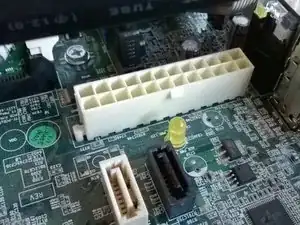

    • Locate the large 24 pin power connecter - it is located next to the power supply. Carefully press down on the little latch and pull straight up to release.

    • Repeat this procedure for the little 4 pin connecter located between the processer and hard drive.

  7. yNASTTZXrm6FN1Uk
    yNASTTZXrm6FN1Uk
    XsgS2syU6ts1HfUU
    Z5yFktwkCRGYtL3G

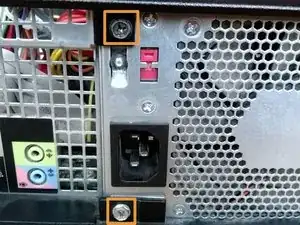

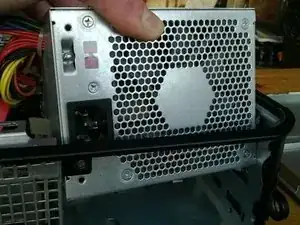

    • In order to remove the power supply you have to first remove two screws connecting the power supply to the case.

    • You can now slide the power supply straight back and lift it straight up and out of the computer.

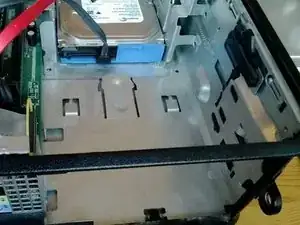

    • It should look like the last picture after the power supply is removed.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Oli

Mitglied seit: 03/01/14

1196 Reputation

2 Kommentare
