Dell Optiplex 745 Small Form Factor Fan Replacement

Geschrieben von: Tyler Whalen
  • Kommentare: 0
Dell Optiplex 745 Small Form Factor Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

This guide will help you replace the fan.

  1. XCHqm6cF2OD2pIMM
    XCHqm6cF2OD2pIMM
    URwbcn32NyXYWTsC

    • Pull the tab and the lid will pop up.

  2. ZpAyvrC6FXiViYUH
    ZpAyvrC6FXiViYUH
    CVtxCFSScLFWCLAv

    • Grab the lid and pull it up and off.

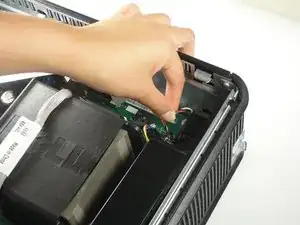

  3. wioRGSXnsSsqCaWP
    wioRGSXnsSsqCaWP

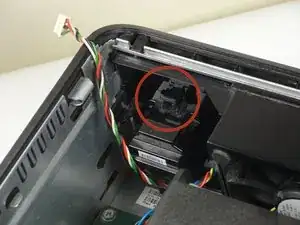

    fiPfuvqmLKnAcAsR
    wv1XxIp1Qg15uUsh

    • Disconnect the cable bundle from the motherboard.

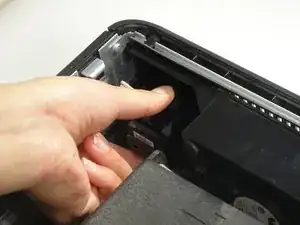

    • Press the tab down, and pull the component toward yourself.

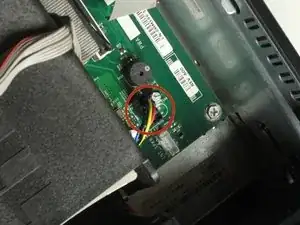

  4. QXKoolNrZcDinqnN
    QXKoolNrZcDinqnN

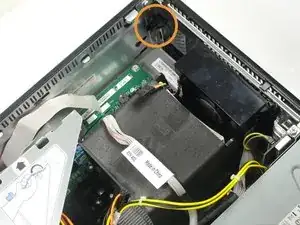

    gleuAPvtLk46ZAaj
    TABjreQDWLXTVTqH

    • Pull the cable bundle out of the motherboard.

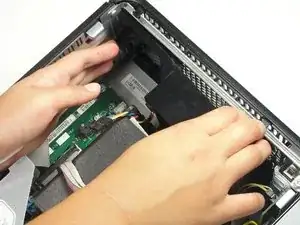

    • Push the black tab away from the computer case and pull the fan away from the case.

Abschluss

To reassemble your device, follow these instructions in reverse order.
