Dell Optiplex 745 Small Form Factor Graphics Card Replacement

Geschrieben von: Daviel Almonte
  • Kommentare: 1
Dell Optiplex 745 Small Form Factor Graphics Card Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

20 Minuten

Einleitung

In this guide, it will include step by step instructions in how to replace a graphics card. Also it will include detailed images for each step.

  1. EEDcJGUdwtHwqnfO
    EEDcJGUdwtHwqnfO
    O6DDiopFhV65GaIm
    xwfTqq61BK3HdqkC

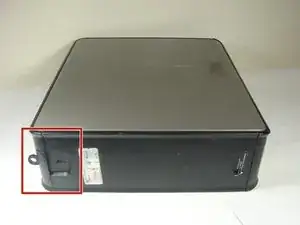

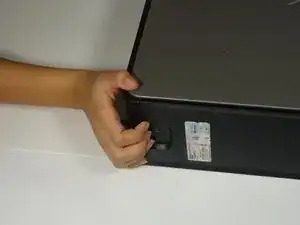

    • Pull the tab on the cover to release the lid.

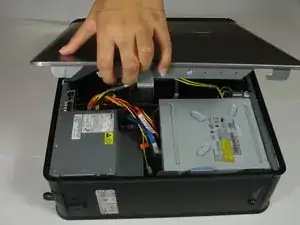

    • Remove the cover to expose the computer.

  2. 6oBieKiFPtIsmpWT
    6oBieKiFPtIsmpWT
    b21aOIfKLXnKBbOK
    xPNuXhLwqwp6XqlD

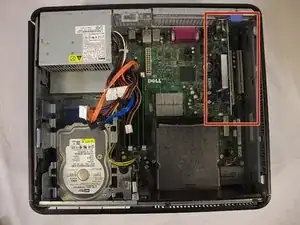

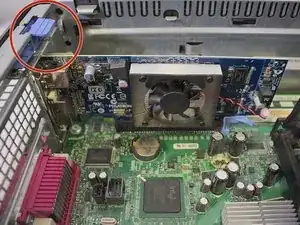

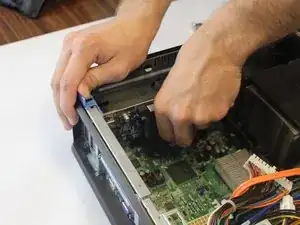

    • The graphics card has a fan built into it and is fasten by two blue clips.

    • Pull up the top blue clip that is above the graphics card while holding the graphics card in place.

  3. 5JBMPLQ6hOPjDsuU
    5JBMPLQ6hOPjDsuU
    LEtRbVNEWQOYC4Ci
    QeWsAkf6WqukP4Be

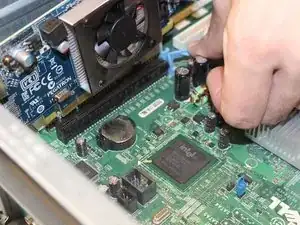

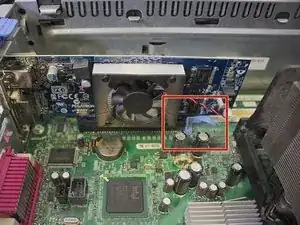

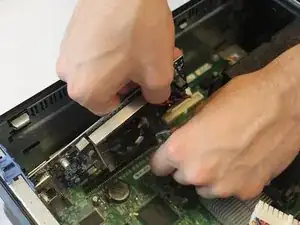

    • Below the graphics card, there is a second clip that holds the card in place.

    • With one hand, pull back the clip while lifting the graphics card with the other.

  4. l5Jv5WrXpvwYLrjR

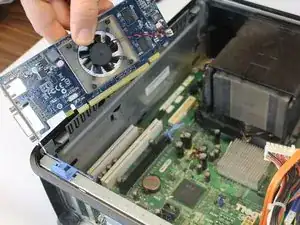

    • Remove the graphics card.

Abschluss

To reassemble your device, follow these instructions in reverse order.
