Dell Optiplex 745 Small Form Factor Power Supply Replacement

Geschrieben von: Samantha Hsu
  • Kommentare: 1
Dell Optiplex 745 Small Form Factor Power Supply Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

10 Minuten

Einleitung

This guide will help you replace the power supply.

  1. XCHqm6cF2OD2pIMM
    XCHqm6cF2OD2pIMM
    URwbcn32NyXYWTsC

    • Pull the tab and the lid will pop up.

  2. ZpAyvrC6FXiViYUH
    ZpAyvrC6FXiViYUH
    CVtxCFSScLFWCLAv

    • Grab the lid and pull it up and off.

  3. b5ZjbEvwLUfeo2F2
    b5ZjbEvwLUfeo2F2
    nUHUBuDVAMAd3CjU

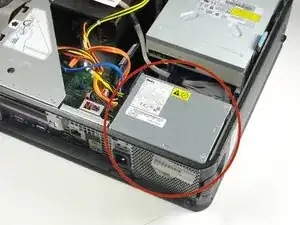

    • Identify the power supply.

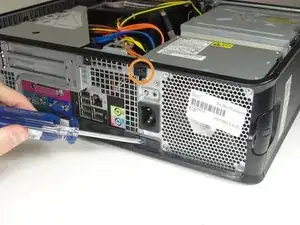

    • Remove the two 9.5 mm Phillips screws on the outside of the case.

  4. A5xJyppKg6NBohjX
    A5xJyppKg6NBohjX
    HrLnxCvnZMe4V2dj

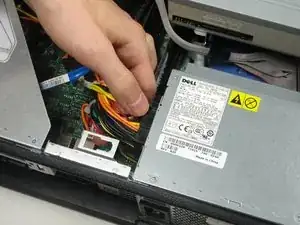

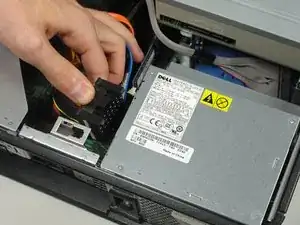

    • Grab the plastic casing and pull out the bundle of cables from the side of the power supply unit.

  5. sLCUtnKgKMyKEZ1Y

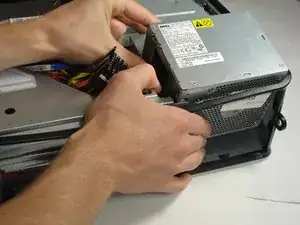

    • Push the power supply from the back and lift from the front.

    • Lift the power supply out of the case.

Abschluss

To reassemble your device, follow these instructions in reverse order.
