Dell Optiplex GX620 Front panel Replacement

Geschrieben von: Padraic Hoselton
  • Kommentare: 0
Dell Optiplex GX620 Front panel Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

10 - 30 Minuten

Einleitung

  1. VYWSKnFhgV5RDis2
    VYWSKnFhgV5RDis2
    jC1F1otMKgy5BQdH

    • Power down your PC and remove the power cord from the back.

  2. VeQVnIMoHCXqrHq1
    VeQVnIMoHCXqrHq1
    aOhZOR45dwjQSLXE

    • Press and hold the power button for about 10 seconds, then release.

    • This helps drain any remaining power stored in the capacitors, so that you can safely work on the internal components.

  3. 5gIdgpg3xnsVtHRH

    • With the computer standing upright, firmly pull on the tab at the back of the computer.

    • When the side panel pops free, gently pull the panel away from the computer.

    • If you have trouble freeing the side panel from the case, you may need to pull the tab a bit harder.

  4. 1oRycUBk5MMZnIap
    1oRycUBk5MMZnIap
    SZl1x6qE1CiBBYUJ
    LPRl3jNUwZKBoBpC

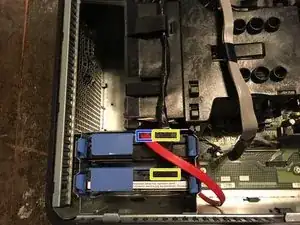

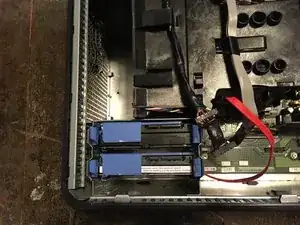

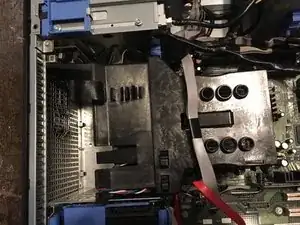

    • Remove the SATA power and data cables.

    • SATA Power

    • SATA Data

  5. tGcNYqOCM2vCsA4M
    tGcNYqOCM2vCsA4M
    YUaVOSaMrPLyNTav
    t6PdBKfJI4fYVH2U

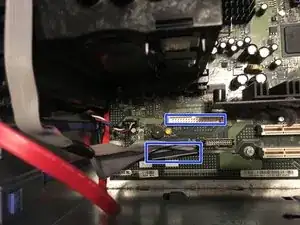

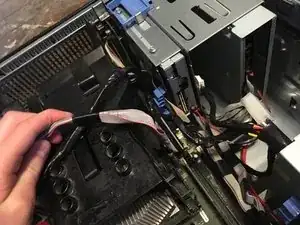

    • Unplug the power and data cables.

  6. QaYGwxwPNOZ1amMB
    QaYGwxwPNOZ1amMB
    6N1D2pSmiA2X3YHI

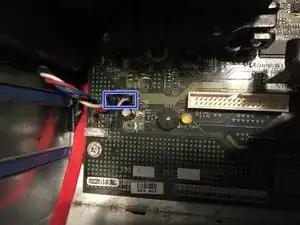

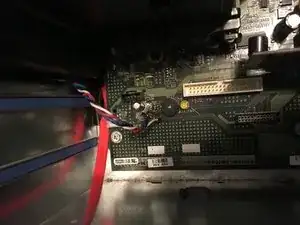

    • Unplug the fan.

  7. vxwymXiAnVOPKDvG
    vxwymXiAnVOPKDvG
    hV6fvSH5rnITCxnu

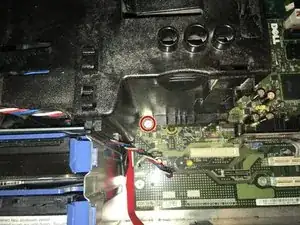

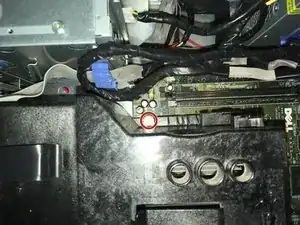

    • Remove the two Phillips #2 screws.

  8. RNREYcGYuWqhIpMr
    RNREYcGYuWqhIpMr
    MEe1PCLAjECgYUM2
    iCBOWNXamHQxLQgy

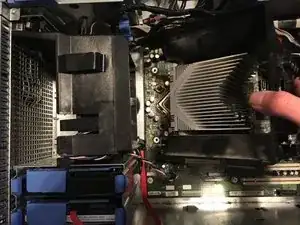

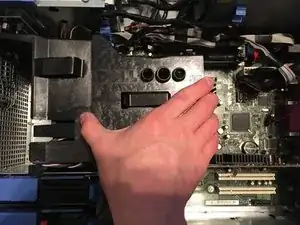

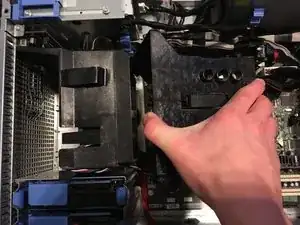

    • Pull the heat sink up.

  9. MSXQKKbU1SvuZQYb
    MSXQKKbU1SvuZQYb
    dDuUtGHsY1Ci3wHJ
    jqHMQT13qk5vc5Cr

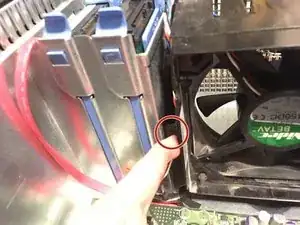

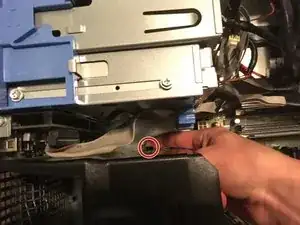

    • Pull the two tabs and pull it out.

    • This needs a lot of force to take it off.

  10. W4coZrkECtHNZnmQ
    W4coZrkECtHNZnmQ
    vMSPZHdgGjxL2MTB

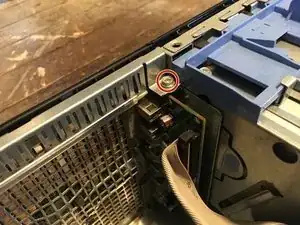

    • Remove the one Phillips #2.

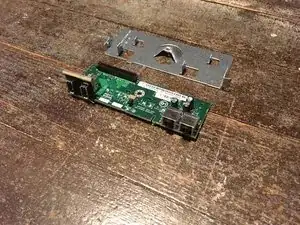

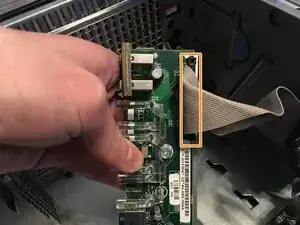

    • Remove the Data cable.

    • Taking this cable off will brake some of the plastic thats locking it in. But you can still plug the cable back in.

  11. 2INs4nINKVGxbTnt
    2INs4nINKVGxbTnt
    qeQiTOchENsTUV21

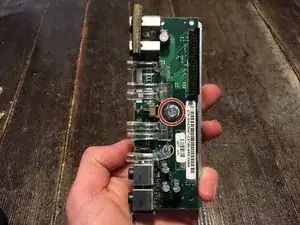

    • Remove the one Phillips #2 screw.

    • Now you can replace it with a new one.

Abschluss

To reassemble your device, follow these instructions in reverse order.
