Dell Optiplex GX620 Hard Drive

Geschrieben von: Padraic Hoselton
  • Kommentare: 2
Dell Optiplex GX620 Hard Drive

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

1 - 5 Minuten

Einleitung

  1. VYWSKnFhgV5RDis2
    VYWSKnFhgV5RDis2
    jC1F1otMKgy5BQdH

    • Power down your PC and remove the power cord from the back.

  2. VeQVnIMoHCXqrHq1
    VeQVnIMoHCXqrHq1
    aOhZOR45dwjQSLXE

    • Press and hold the power button for about 10 seconds, then release.

    • This helps drain any remaining power stored in the capacitors, so that you can safely work on the internal components.

  3. 5gIdgpg3xnsVtHRH

    • With the computer standing upright, firmly pull on the tab at the back of the computer.

    • When the side panel pops free, gently pull the panel away from the computer.

    • If you have trouble freeing the side panel from the case, you may need to pull the tab a bit harder.

  4. EBJ1yoGpI3mQLePC
    EBJ1yoGpI3mQLePC
    RYT4feWI5KiY1Hq2
    XSxP6Sq2YA1KIPxo

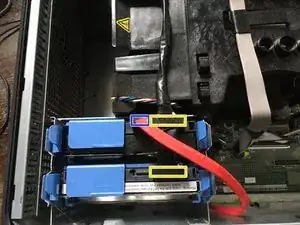

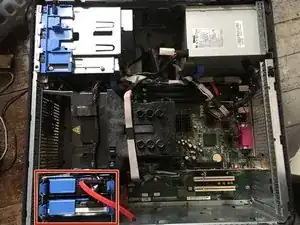

    • Remove the power and SATA data cables.

    • SATA power

    • SATA data

  5. HLbGkHGRekYQYvqg
    HLbGkHGRekYQYvqg
    tufFrHLZ1giSJXVM
    CBBoLYXnWXelMMDY

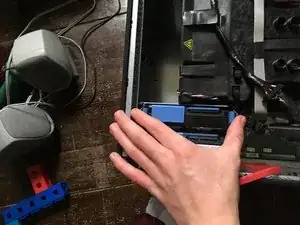

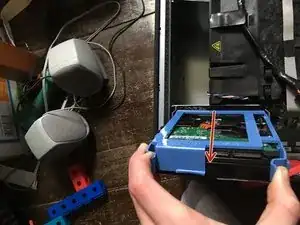

    • Pull the two tabs on the hard drive and pull up

  6. kBeLLrYuJS4HsN4B
    kBeLLrYuJS4HsN4B
    sLmnGLPHSPjNLmNN
    cy1merPuZh5DhyEC

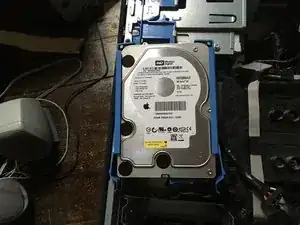

    • Now take the tray off of the hard drive.

    Yes that hard drive is not the original, it’s a a hard drive out of an 2008 iMac. I have the original 80GB hard drive still in this machine with this other one.

    Padraic Hoselton -

    Way too easy. My drive was situated under the optical drive. Fun 0. Need magic tool or remove the fan shroud. Major PITA.

    Edward Einstain -

Abschluss

To reassemble your device, follow these instructions in reverse order.
