Dell Optiplex GX620 Motherboard Replacement

Geschrieben von: Padraic Hoselton
  • Kommentare: 0
Dell Optiplex GX620 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

17

Zeitaufwand

30 Minuten - 1 Stunde

Einleitung

This guide show you how to remove and replace the motherboard in a Dell Optiplex GX620.

  1. VYWSKnFhgV5RDis2
    VYWSKnFhgV5RDis2
    jC1F1otMKgy5BQdH

    • Power down your PC and remove the power cord from the back.

  2. VeQVnIMoHCXqrHq1
    VeQVnIMoHCXqrHq1
    aOhZOR45dwjQSLXE

    • Press and hold the power button for about 10 seconds, then release.

    • This helps drain any remaining power stored in the capacitors, so that you can safely work on the internal components.

  3. 5gIdgpg3xnsVtHRH

    • With the computer standing upright, firmly pull on the tab at the back of the computer.

    • When the side panel pops free, gently pull the panel away from the computer.

    • If you have trouble freeing the side panel from the case, you may need to pull the tab a bit harder.

  4. 4YSgbWsRs4YZBa1X
    4YSgbWsRs4YZBa1X
    CpKZUynoN2ioR6XI
    hYNkOPSKCKtaMAiv

    • Move the cables out of your way.

    • SATA Power

    • SATA Data

  5. ckAPZv1QcHoRNUM3
    ckAPZv1QcHoRNUM3
    QVjReJbgoQIFrxXL
    ARpZswHZj3Rdfocl

    • Unplug the power cable

    • Unplug the data cable

  6. OAunQ1YkkTQUuIVF
    OAunQ1YkkTQUuIVF
    i61EhC4RRskIcfSW

    • Unplug the fan that is on the motherboard.

  7. WS2l2MlGYKwZ6j6d
    WS2l2MlGYKwZ6j6d
    uDXItDfXQ6ZpNSeJ

    • There is two Phillips #2 screws that need to be removed.

    • The two screws have springs that keep them there.

  8. FEKyYtKuWHnsUSNv
    FEKyYtKuWHnsUSNv
    5r41sPGHngVtfxvx
    RUL1ZhsRIF3vpMej

    • Lift the heat sink.

  9. BKScIDeHFhZ6jhKL
    BKScIDeHFhZ6jhKL
    W1VJFkIvCBPupe5o
    cDmqRTyIMVtwndWV

    • Push and release tap on it. And then take the CPU out.

    • Remember to put new thermal paste on the CPU.

  10. VjenTdPc1HwqKwbn
    VjenTdPc1HwqKwbn
    oOLgnbCMn5StSTw4

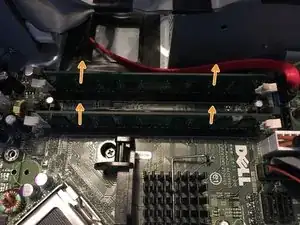

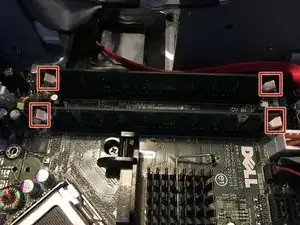

    • Push the tabs down.

    • Pull the cards out.

  11. QewTCBVQnHytyTHA
    QewTCBVQnHytyTHA
    NyOemLStRAT6tiCO
    cBDnmFmZ4p3W1Anv

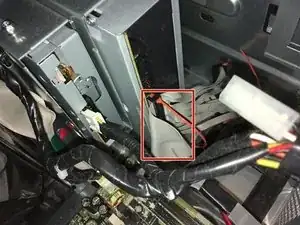

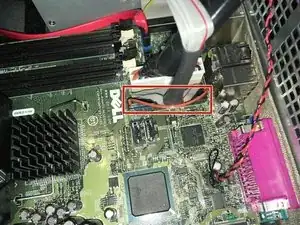

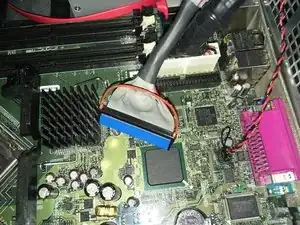

    • Pull the two cables from the DVD drive off.

  12. laJRwdeVmnTDHmv4
    laJRwdeVmnTDHmv4
    31cSLKZag2TxvRgC

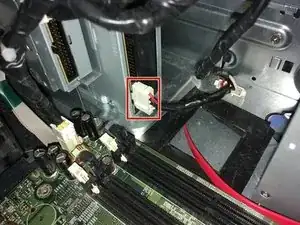

    • Pull the power cable from the DVD drive off.

  13. VXDuuGkDRBS6fwBZ

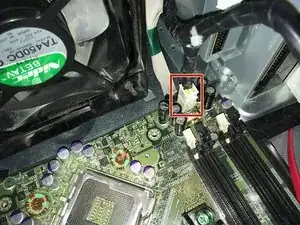

    • Pull the CPU power cable off.

  14. lou3cEj1BgsIKWWP
    lou3cEj1BgsIKWWP
    vXZ1HFyeXOgfWeLA

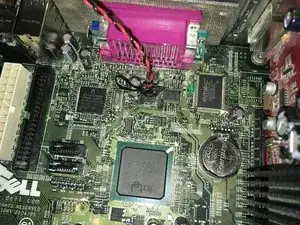

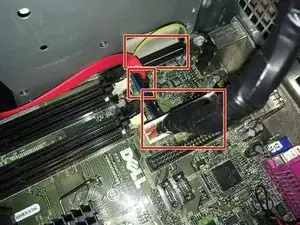

    • Pull the three cables off.

  15. uBdSO2FNYs6uUtLW
    uBdSO2FNYs6uUtLW
    DDBZqFR6B24Vpyce
    WTHj64i2i1yWIYhy

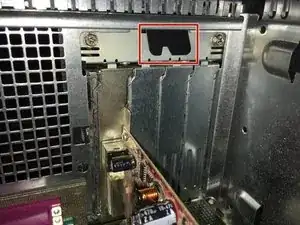

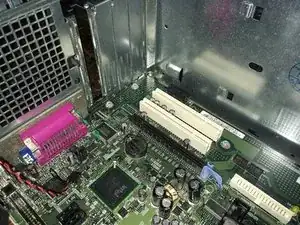

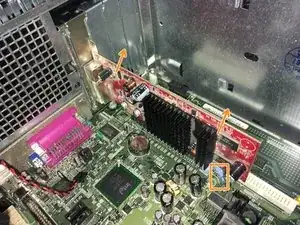

    • Push the tab to releases the latch.

    • Push the tab and pull the graphics card out.

  16. KrHXc6VrXRtGP1O3
    KrHXc6VrXRtGP1O3
    LsrxqFyAVFHNG4WF

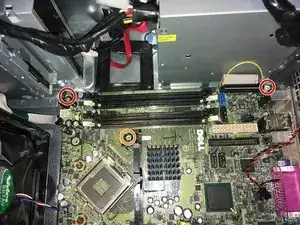

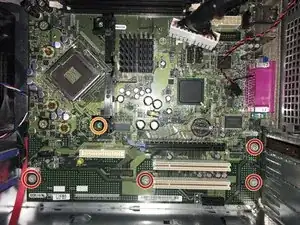

    • Remove the six Philips #2 screws.

    • Remove the two green Philips #2 screws.

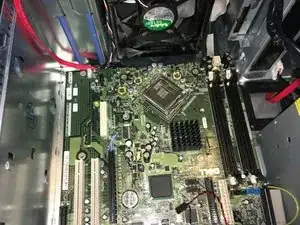

  17. kckFUcsVDtvWsUqg
    kckFUcsVDtvWsUqg
    BPKEEP2bq5BtpEwo
    lOwvmnlMIjvZ1IKp

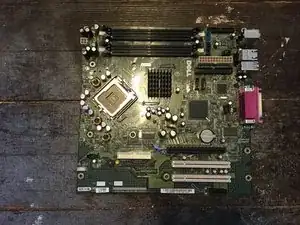

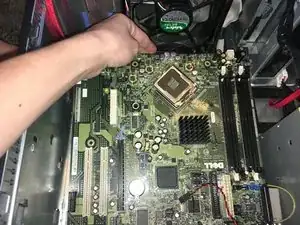

    • Gently pull the motherboard out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
