Dell Optiplex GX620 Network Adapter Replacement

Geschrieben von: Kristina
  • Kommentare: 0
Dell Optiplex GX620 Network Adapter Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

10 Minuten

Einleitung

This PCI network adapter enables users to connect to the internet typically though an Ethernet cable. You will not be able to obtain a connection if this device is faulty.

  1. VYWSKnFhgV5RDis2
    VYWSKnFhgV5RDis2
    jC1F1otMKgy5BQdH

    • Power down your PC and remove the power cord from the back.

  2. VeQVnIMoHCXqrHq1
    VeQVnIMoHCXqrHq1
    aOhZOR45dwjQSLXE

    • Press and hold the power button for about 10 seconds, then release.

    • This helps drain any remaining power stored in the capacitors, so that you can safely work on the internal components.

  3. 5gIdgpg3xnsVtHRH

    • With the computer standing upright, firmly pull on the tab at the back of the computer.

    • When the side panel pops free, gently pull the panel away from the computer.

    • If you have trouble freeing the side panel from the case, you may need to pull the tab a bit harder.

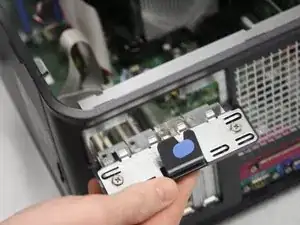

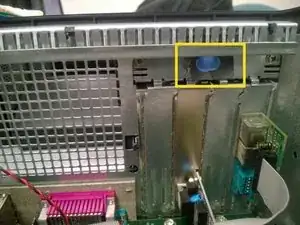

  4. DjvyA4CaDLXHmpXZ
    DjvyA4CaDLXHmpXZ
    hC324HsQoTBkR2QD

    • Gently push the release tab on the card retention latch from the inside to pivot the latch open. The latch will remain in the open position

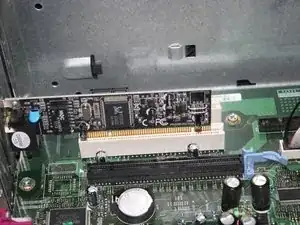

  5. KWWJHMoZJNOYg5Ur

    • With your free hand, gently squeeze the sides of the card. Pull upwards to release it from the tab slots that hold it in place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
