Dell Optiplex GX620 Optical Drive Replacement

Geschrieben von: Kristina
  • Kommentare: 0
Dell Optiplex GX620 Optical Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 Minuten

Einleitung

The optical drive should be replaced if the computer no longer recognizes the device, or if the disc reader is faulty.

  1. VYWSKnFhgV5RDis2
    VYWSKnFhgV5RDis2
    jC1F1otMKgy5BQdH

    • Power down your PC and remove the power cord from the back.

  2. VeQVnIMoHCXqrHq1
    VeQVnIMoHCXqrHq1
    aOhZOR45dwjQSLXE

    • Press and hold the power button for about 10 seconds, then release.

    • This helps drain any remaining power stored in the capacitors, so that you can safely work on the internal components.

  3. 5gIdgpg3xnsVtHRH

    • With the computer standing upright, firmly pull on the tab at the back of the computer.

    • When the side panel pops free, gently pull the panel away from the computer.

    • If you have trouble freeing the side panel from the case, you may need to pull the tab a bit harder.

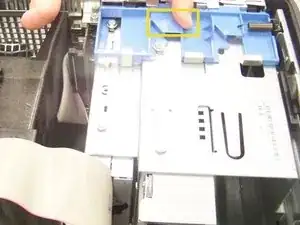

  4. RNVqAhckSkY3ZkEj

    • Slide the blue latch downward until the panel can be removed from it's hinges.

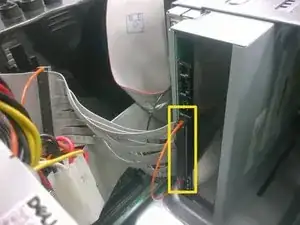

  5. EdipJ1jLT2vroJFn

    • Gently remove the CD/DVD and power cables from the back of the optical drive

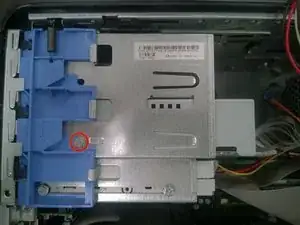

  6. fwoSTZghbKqR1K1l

    • Using a Phillips #1 screwdriver, remove the screw connecting the optical drive to the drive bay.

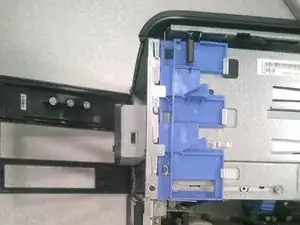

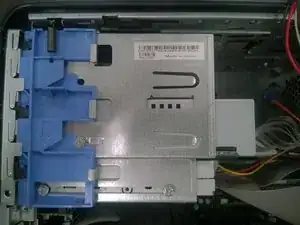

  7. vtMoKfhlMbWbcPhg
    vtMoKfhlMbWbcPhg
    pDJDUuPKLLaWHnHd

    • To remove the optical drive from the drive bay, slide the drive towards the front of the computer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
