Dell Optiplex SX280 Hard Drive Replacement

Geschrieben von: Wyatt
  • Kommentare: 2
Dell Optiplex SX280 Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 Minuten

Einleitung

Remove and Replace the Hard Drive

  1. 4ajI5vYBVAH6ILMC

    • Make sure the computer is turned off, by selecting the start menu and choosing “Shut Down”.

    • Ensure all cables, speakers and other devices are unplugged and turned off before opening the computer case.

  2. sdrbdanRpFGHKRFT
    sdrbdanRpFGHKRFT
    5F2rKqpvlGVLmcpd

    • Lay the computer on its side; you will see a blue knob.

    • Turn this knob 90 deg clockwise.

  3. UyXsu1ZuJjv1TUkc
    UyXsu1ZuJjv1TUkc
    rTYZcUQRXvknXMCK

    • Slide the panel case forward about 1/2 inch while knob is turned.

    • Lift panel case off computer.

  4. ObNMJOa5VWXV2Y4J
    ObNMJOa5VWXV2Y4J
    mYi5sqRLXLuwdDyS

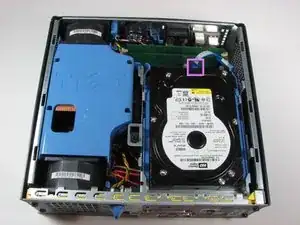

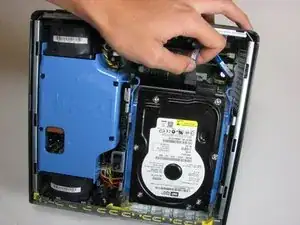

    • Unplug the blue cable that connects the hard drive to the motherboard.

  5. G2wvZtwfMTE2FjdA
    G2wvZtwfMTE2FjdA
    SKCVNrefhL2Luibj

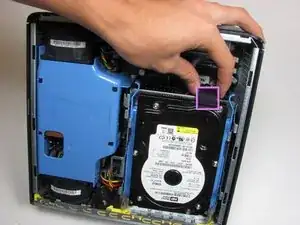

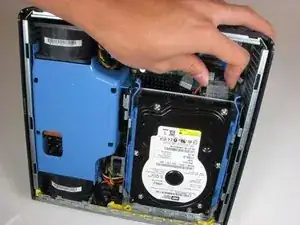

    • Unplug the power supply, distinguished by its red and yellow wires (yellow wire obscured from view).

  6. vWRsFmIfC5lKHSgw

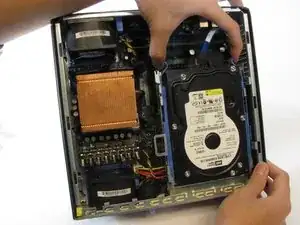

    • Squeeze the release tabs on either side of the hard drive.

  7. HOWRPS3WgKCGYoDU
    HOWRPS3WgKCGYoDU
    ytyKRnBRCdXBIJnS

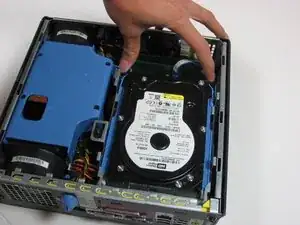

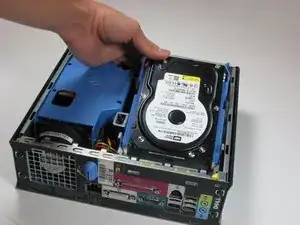

    • Slide the Hard Drive out while squeezing the tabs.

Abschluss

To reassemble your device, follow these instructions in reverse order.
