Dell Optiplex SX280 Lower Fan Replacement

Geschrieben von: Tom
  • Kommentare: 0
Dell Optiplex SX280 Lower Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

20 - 35 Minuten

Einleitung

Remove the Lower Fan from the computer tower.

  1. 4ajI5vYBVAH6ILMC

    • Make sure the computer is turned off, by selecting the start menu and choosing “Shut Down”.

    • Ensure all cables, speakers and other devices are unplugged and turned off before opening the computer case.

  2. sdrbdanRpFGHKRFT
    sdrbdanRpFGHKRFT
    5F2rKqpvlGVLmcpd

    • Lay the computer on its side; you will see a blue knob.

    • Turn this knob 90 deg clockwise.

  3. UyXsu1ZuJjv1TUkc
    UyXsu1ZuJjv1TUkc
    rTYZcUQRXvknXMCK

    • Slide the panel case forward about 1/2 inch while knob is turned.

    • Lift panel case off computer.

  4. bS6TTSbRcAjIKHn4
    bS6TTSbRcAjIKHn4
    nAGj4cbkd53Lpf5n

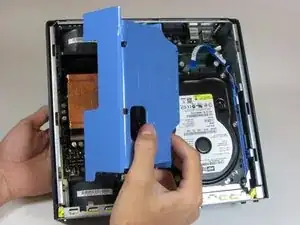

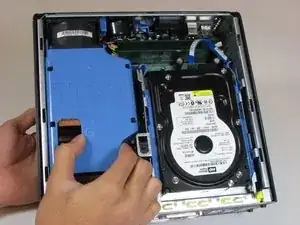

    • Remove the large blue cover from the computer. There are no screws or tabs holding it in place.

  5. tRDRpjUwPHGHBEky

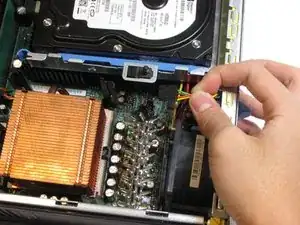

    • Remove the power supply that connects the lower fan to the motherboard, distinguished by it's black, red, green and yellow wires.

    • Make sure to press on the release tab while removing the power supply.

  6. 1pW4IynXuLdCMZhU
    1pW4IynXuLdCMZhU
    PQaQvSIEAhpeECAU

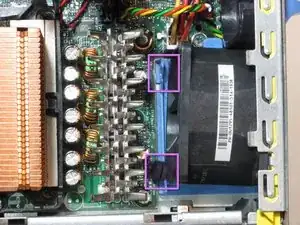

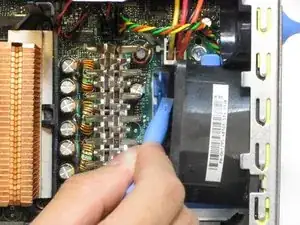

    • Remove the rubber grommets from the base of the fan. A spudger may be useful.

  7. Z3fRwwMHvJxIoJRX
    Z3fRwwMHvJxIoJRX
    Tf4rDA2ZJMCKZKbK

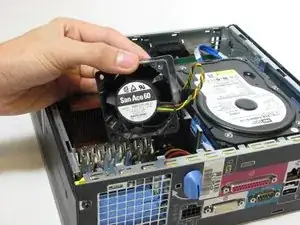

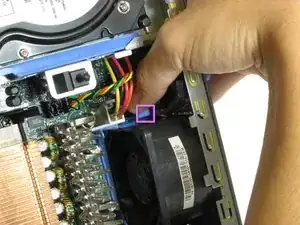

    • Press on the blue release tab and remove the fan.

Abschluss

To reassemble your device, follow these instructions in reverse order.
