Dell Optiplex SX280 RAM Replacement

Geschrieben von: Wyatt
  • Kommentare: 0
Dell Optiplex SX280 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

Replace the old RAM cards to greatly enhance computer speed.

  1. 4ajI5vYBVAH6ILMC

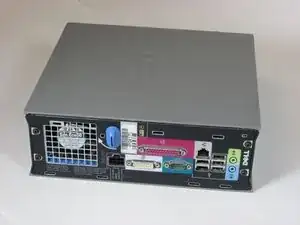

    • Make sure the computer is turned off, by selecting the start menu and choosing “Shut Down”.

    • Ensure all cables, speakers and other devices are unplugged and turned off before opening the computer case.

  2. sdrbdanRpFGHKRFT
    sdrbdanRpFGHKRFT
    5F2rKqpvlGVLmcpd

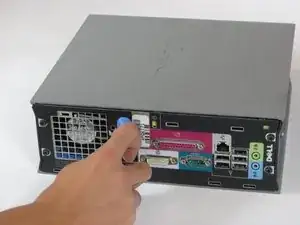

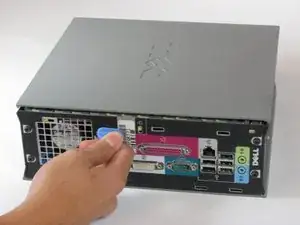

    • Lay the computer on its side; you will see a blue knob.

    • Turn this knob 90 deg clockwise.

  3. UyXsu1ZuJjv1TUkc
    UyXsu1ZuJjv1TUkc
    rTYZcUQRXvknXMCK

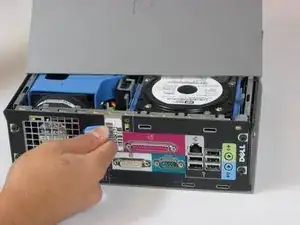

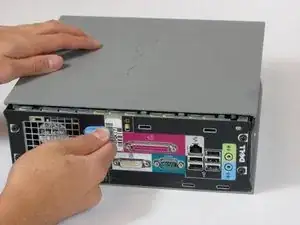

    • Slide the panel case forward about 1/2 inch while knob is turned.

    • Lift panel case off computer.

  4. ZvGFFASYndoHiQkt

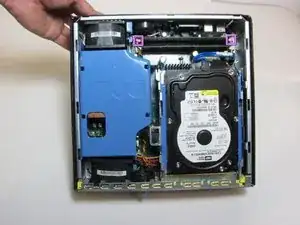

    • The RAM are the two green cards in the corner of the computer.

    • At each end of the card, there are two white clips securing the RAM to the Motherboard.

  5. 5DBtHZCaltw5NmJe
    5DBtHZCaltw5NmJe
    j4KWGvSshfIwmdwX

    • Push down both white clips with your thumbs until you hear a click.

    • The RAM cards can now be removed.

Abschluss

To reassemble your device, follow these instructions (steps 1-3) in reverse order.
