Dell Optiplex SX280 Upper Fan Replacement

Geschrieben von: Tom
  • Kommentare: 0
Dell Optiplex SX280 Upper Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 Minuten

Einleitung

Replace the Upper Fan in the computer tower to prevent overheating and computer damage.

Werkzeuge

  1. 4ajI5vYBVAH6ILMC

    • Make sure the computer is turned off, by selecting the start menu and choosing “Shut Down”.

    • Ensure all cables, speakers and other devices are unplugged and turned off before opening the computer case.

  2. sdrbdanRpFGHKRFT
    sdrbdanRpFGHKRFT
    5F2rKqpvlGVLmcpd

    • Lay the computer on its side; you will see a blue knob.

    • Turn this knob 90 deg clockwise.

  3. UyXsu1ZuJjv1TUkc
    UyXsu1ZuJjv1TUkc
    rTYZcUQRXvknXMCK

    • Slide the panel case forward about 1/2 inch while knob is turned.

    • Lift panel case off computer.

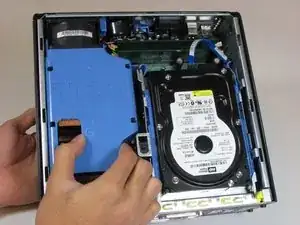

  4. VXkpCQHrm2CeCnl5
    VXkpCQHrm2CeCnl5

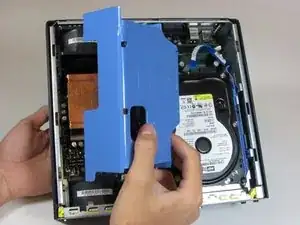

    bIyVeuLuIdgLQCUr

    • Remove the large blue cover from the computer. There are no screws or tabs holding it in place.

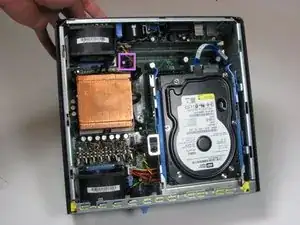

  5. YuOg6QR6KNtaRyF1
    YuOg6QR6KNtaRyF1
    ssVydFoJpBghk4w5

    • Remove the power supply that connects the upper fan to the motherboard. The power supply has black, red, green and yellow wires.

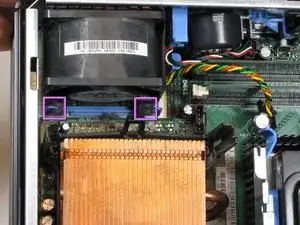

  6. R4EwvXfbowfWjv6x
    R4EwvXfbowfWjv6x

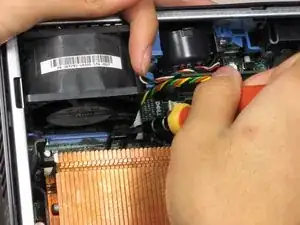

    JsTcaaohxAxbpOJV

    • Remove the rubber grommets from the base of the fan. A screwdriver or spudger may be useful.

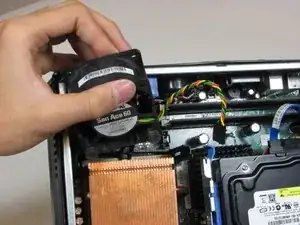

  7. gLULqvOTRUCcAl4B

    • Pull the upper fan out of the computer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
