Dell Precision 5510 Hard Drive Replacement

Geschrieben von: Atlanta Phelps
  • Kommentare: 1
Dell Precision 5510 Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 Minuten

Einleitung

These are the steps to remove the hard drive from the Precision Dell 5510, see the prerequisites for the back removal, and battery removal.

  1. fJufTEJVWRqVU2Ne

    • Open the system badge flap over to reveal the screws underneath (marked 1 on the image).

    • Remove the 12 screws that secure the base cover to the computer.

    According to the owner’s manual at https://www.dell.com/support/manuals/en-..., most of the screws for the base cover are Torx #5 with a couple of Phillips #0 under the badge flap.

    KCMax -

  2. uUAIrfDAT4xfPB5A

    • Pry the edges base cover and lift it to remove it from computer.

  3. RiLqrHWGOJmPREwi
    RiLqrHWGOJmPREwi
    vBfMpBiqywOSFwXY

    • Unplug the connection that links the battery to the computer.

  4. rjVem3IIKoUIo2MZ
    rjVem3IIKoUIo2MZ
    sWmNSMptxQyVKpOr

    • Remove the four 4.0 mm JIS #0 screws surrounding the battery.

  5. DucwQ1cvSUZ3L2A1
    DucwQ1cvSUZ3L2A1
    4nTat22ECfIZXWaJ

    • Carefully remove the battery from the computer.

  6. JD62LfNktFXVljye
    JD62LfNktFXVljye
    eIrIHKtu5bupMgTY

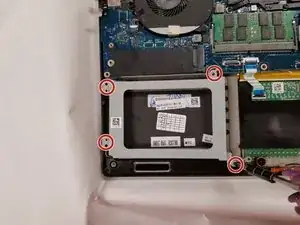

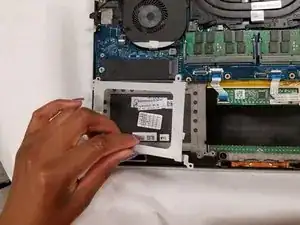

    • Remove the four 4.0 mm screws with a Phillips 1 screwdriver, and remove the hard drive bracket.

  7. bZBZP2aIBgxRJoQa

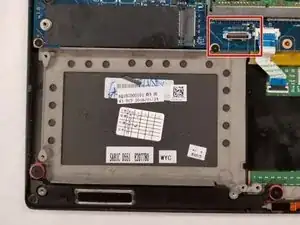

    • Unplug the hard drive, and remove it. (We do not have a hard drive to be shown, but see image for where the hard drive would be unplugged from.)

Abschluss

To reassemble your device, follow these instructions in reverse order.
