Dell Precision 5520 Hard Drive Replacement

Geschrieben von: Johnathan Hammond
  • Kommentare: 2
Dell Precision 5520 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

10 - 20 Minuten

Einleitung

  1. fjZpEBrJVLYqG3KB
    fjZpEBrJVLYqG3KB
    mSQ3qxiXs6KWRIWW

    • Be sure to power off and unplug your device before you begin your repair.

    • Turn the system badge flap over (1) and then remove the ten M2x3 screws that secure the base cover to the computer (2).

    • Pry the edges of the base cover and lift it to remove it from the computer.

    • NOTE: Use a Torx #5 screwdriver for the base screws and a Phillips screwdriver for the two M2x8 screws inside the badge flap.

  2. fIQA3VKTOk2GhKwm

    • Disconnect the battery cable from the system board [1].

    • Remove the seven M2x4 screws that secure the battery to the computer [2].

    • Lift the battery off the computer [3].

    • Do not apply pressure to the surface of the battery

    • Do not bend

    • Do not use tools of any kind to pry on or against the battery

    • If a battery cannot be removed within the constraints above, please contact Dell technical support

    Just to note there are two different batteries for this model.

    TechYeah! -

    Will the BIOS complain that this is not a Dell purchased battery and thus refuse to charge it?

    Steven Weller -

  3. 1km3jbuTndVjOsQi

    • Remove the four M2x4 screws securing the hard-drive bracket to the computer [1].

    • Lift the hard-drive cage [2] off the hard drive assembly [3].

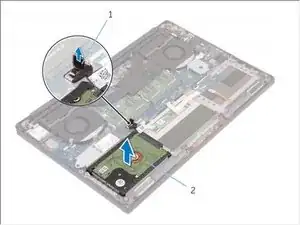

  4. dGRjO2mMPXBh3duk

    • Disconnect the hard-drive cable from the system board [1].

    • Lift the hard drive off the palm rest assembly [2].

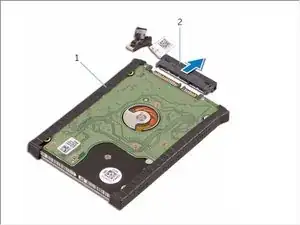

  5. lQWRsOjVZFGGVfyC

    • Disconnect the hard drive interposer from the hard drive assembly and then remove the hard drive covers away from the hard drive.

Abschluss

To reassemble your device, follow these instructions in reverse order.
