Dell Precision 7710 Hard Drive Replacement

Slide the release latch to unlock the battery [1].

Lift and remove the battery from the computer [2].

Slide the release latch to unlock the battery cover [1].

Slide and lift the battery cover to remove it from the computer [2].

Remove the screws that secure the hard drive to the computer [1].

Lift the hard-drive latch to the unlock position [2].

Slide and lift the hard drive from the computer [3].

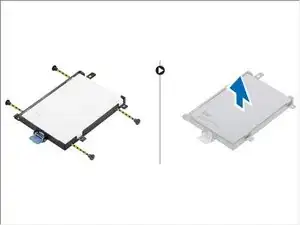

Remove the screws that secure the hard drive. Lift the hard drive from the bracket.
