Dell Precision 7720 Memory Module Replacement

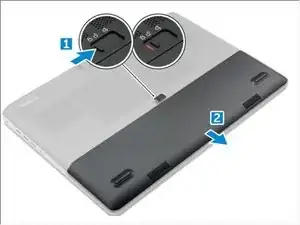

Slide the release latch towards the unlock icon to release the battery cover [1].

Slide and lift the battery cover to remove it from the computer [2].

Slide the release latch towards from the unlock icon to unlock the battery[1].

Lift and remove the battery from the computer [2].

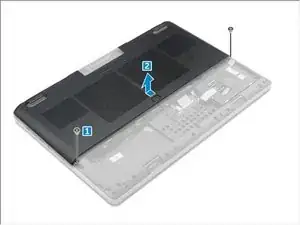

Remove the M2.5X5.0 screws that secure the base cover to the computer [1].

Slide and lift the base cover away from the computer [2].

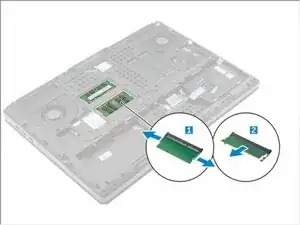

Pry the retention clips away from the memory module until it pops up.

Lift the memory module and remove it from the computer.
