Dell Precision M2400 Hard Drive Replacement

Geschrieben von: Johnathan Hammond
  • Kommentare: 0
Dell Precision M2400 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

5 - 10 Minuten

Einleitung

  1. FGdD6bYhvIQDXLCE

    • Slide the battery release latches toward each other to lock them in an open position.

    • Slide the battery out of the battery bay.

  2. sApSsBwvULKFc1OG

    • Remove the two M3 x 3-mm screws.

    • Slide the hard drive out of the base assembly.

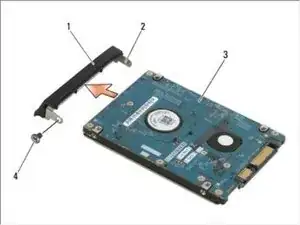

  3. iQwGcjQV1krYFLhu

    • Remove the M3 x 3-mm screw on the hard drive bezel.

    • Remove the hard drive bezel.

Abschluss

To reassemble your device, follow these instructions in reverse order.
