Dell Precision M2800 Memory Module Replacement

Geschrieben von: Johnathan Hammond
  • Kommentare: 0
Dell Precision M2800 Memory Module Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

5 - 10 Minuten

Einleitung

  1. qBT51wqhPOQgNBUx
    qBT51wqhPOQgNBUx
    DXykDnS36MyOaYl1

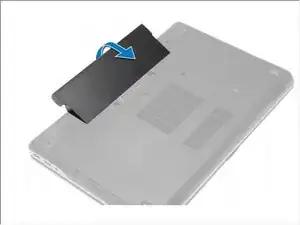

    • Slide the release latches to unlock the battery.

    • Flip the battery out of the computer.

  2. RvChQ1uWYxvLX2SL
    RvChQ1uWYxvLX2SL
    a3mcX2lFdfOKVCT2

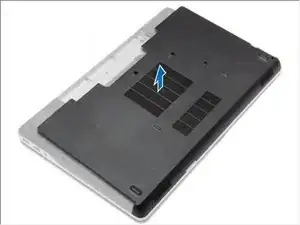

    • Remove the screws that secure the base cover to the computer.

    • Lift the base cover and remove it from the computer.

  3. nXNZImYJLGE5hyXt

    • Pry the securing clips away from the memory module until it pops-up and remove the memory module from its connector on the system board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
