Einleitung

  1. wfEDXjxFjDCoAJ1h
    wfEDXjxFjDCoAJ1h
    sFVGGRmHaxSLKyXA

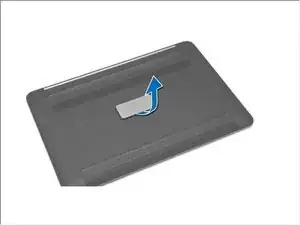

    • Turn the system badge fap over and place it on the base cover.

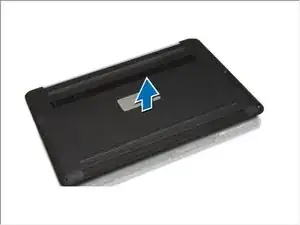

    • Remove the screws that secure the base cover to the computer. Release and remove the base cover from the computer.

    • NOTE: To remove the screws from the base cover, use a T5 Torx screwdriver.

    • Lift up and remove the base cover from the computer.

  2. 4s12xXoGRQsoHT1p
    • Disconnect the battery cable from the system board [1].

    • Use a Phillips screwdriver to remove the four screws securing the battery to the laptop.

    • Lift the battery off the computer [2].

  3. 53cwTEtvxtN3QrG6
    • Disconnect the hard-drive cable from the system board [1].

    • Remove the screws that secure the hard drive to the computer.

    • Lift the hard drive off the computer [2].

  4. S1ZLo3ocxCCkniXt

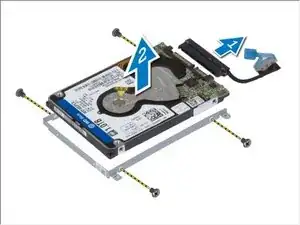

    • Disconnect the hard-drive cable from the hard drive [1].

    • Remove the screws that secure the hard-drive bracket to the hard drive.

    • Lift the hard drive off the hard-drive bracket [2].

Abschluss

To reassemble your device, follow these instructions in reverse order.
