Einleitung

  1. ZrorbH25IydiRy2L
    ZrorbH25IydiRy2L
    pJ2x5E2wI34axGRv
    • Slide the battery release latch into the unlock position.

    • Remove the battery from the system.

  2. wbTx2Uv5FG1KncZI
    wbTx2Uv5FG1KncZI
    3EXACGwQSnnUclqw
    24KjgR4PxmhOQCqg
    • Remove the screws that secure the base cover to the computer.

    • Press the rubber feet towards the rear of the system to disengage the bottom door.

    • Remove the base cover from the computer.

  3. TIoFvVtHvpk3YLpQ
    TIoFvVtHvpk3YLpQ
    O6WRmw1dYmLakWbq
    hTWOjbf1aCNIesPH

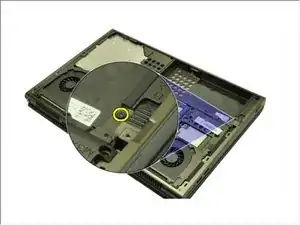

    • Remove the screws securing the hard drive bracket in place.

    • Remove the screw securing the hard drive latch in place

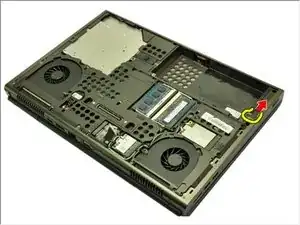

    • Slide the hard drive release latch into the unlock position.

  4. XiDhu5qQNlVoJVMB
    XiDhu5qQNlVoJVMB
    XGbocAhZQIRuPMhl
    aIsYP4QURGVKCcJG

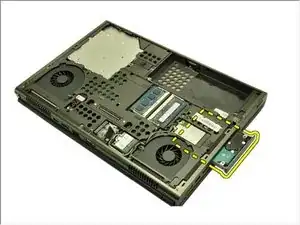

    • Remove the hard drive bracket from the system.

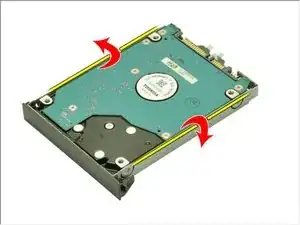

    • Flex the hard drive bracket outward and press the hard drive upwards from the bottom.

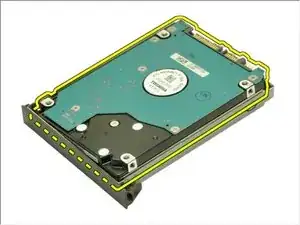

    • Remove the hard drive from the hard drive bracket.

Abschluss

To reassemble your device, follow these instructions in reverse order.
