Einleitung

  1. YCNsh4ZC23YYMjBC
    • Slide the battery release latch and remove the battery.

  2. wV3UZZuZcETqTG1c
    • Remove the two M2 x 3-mm screws.

    • Slide the cover toward the front of the computer to release the tabs from the base assembly.

    • Remove the cover from the base assembly.

  3. WrdIyNHklCL5mIAu
    • Loosen the two captive screws on the HDD1 carrier, and remove the carrier.

    • Push in, then pull up on the safety loop to remove the cover.

    • Use the pull tab to disconnect the HDD1 from the connector on the system board, and remove the HDD1 from the computer.

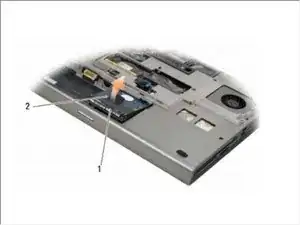

  4. QgSTWRuZMyltg2IN
    • Remove the two M3 x 3-mm screws that secure the pull tab to the HDD1.

    • Set the pull tab aside to use with the replacement HDD1.

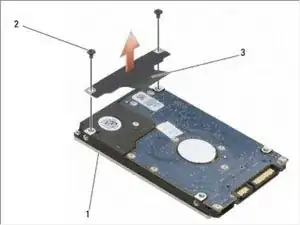

  5. 4BXgUcVVqg3cYIJc
    • Remove the two M3 x 3-mm screws that secure the carrier to the computer.

    • Pull up on the pull tab to remove the carrier.

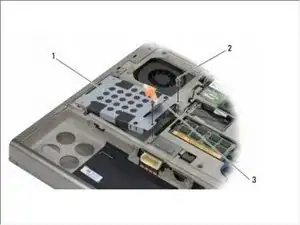

  6. fvmyHNxkfdCcq1xQ
    • Remove the two M3 x 3-mm screws that secure the carrier to the HDD2.

    • Remove the carrier from the HDD2. If your computer does not have an HDD2, remove the hard drive place-holder from the carrier.

    • Remove the interposer from the HDD2 or the place-holder, and set the interposer aside.

Abschluss

To reassemble your device, follow these instructions in reverse order.
