Dell Precision M65 Hard Disk Drive Replacement

Geschrieben von: Jay Curts
  • Kommentare: 0
Dell Precision M65 Hard Disk Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

5 Minuten

Einleitung

  1. cIrsQ5IyWGxkXfiR
    cIrsQ5IyWGxkXfiR
    KmKZwkJVxPRXFTT5

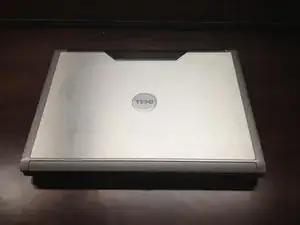

    • Place the laptop with the front facing you.

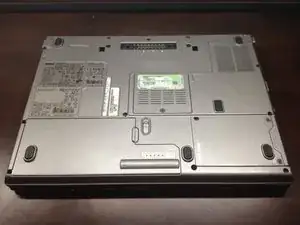

    • Turn over the computer.

  2. VSNGPEqmHxb46QHG
    VSNGPEqmHxb46QHG
    onCWfPb5CmejSGGD

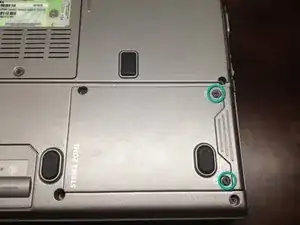

    • Remove the two 3.5mm #1 Phillips screws.

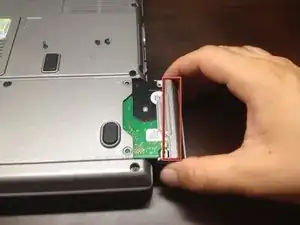

    • Slide the hard drive by pulling its bezel.

  3. KDyY4EmDMrfwBppR

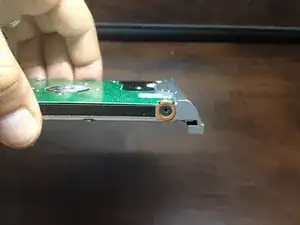

    • The hard drive bezel is attached by two 3.5mm #1 Phillips screws. Remove them.

Abschluss

To reassemble your device, follow these instructions in reverse order.
