Dell Precision M6600 Hard Drive Replacement

Geschrieben von: Kaley lindsay
  • Kommentare: 2
Dell Precision M6600 Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

10 Minuten

Einleitung

  1. LFqDcahOVu4bwGEO

    • Slide the lock key to unlock the battery. Then you can lift the battery from its holder.

  2. WQfeSySfcWLkebwj
    WQfeSySfcWLkebwj
    ZCZg2LHoXaaf2Qom

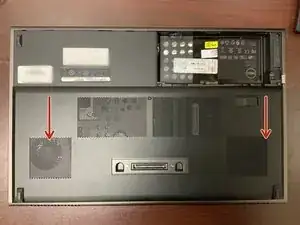

    • Using Phillips screwdriver, remove 2 screws holding case.

    • Slide case towards back of laptop then lift off to remove.

  3. hwSsKJLEkaAIh3SK
    hwSsKJLEkaAIh3SK
    anfIqPQhELDKKSZI

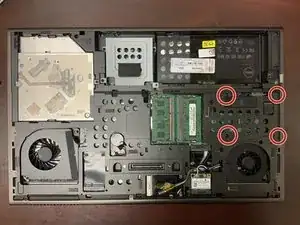

    • Using a Phillips Screwdriver, remove the 4 screws that hold the hard drive in place.

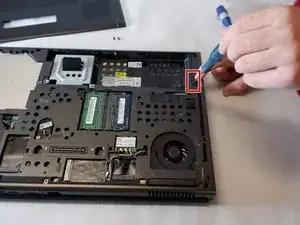

    • Using a Phillips #00 take out the 1.5mm screw then slide to unlock the SSD holder.

    There is also four more screws holding the drive in place, two at the front of the drive and two at the sides, These will need to be taken out before the drive holder will slide out.

    Willaim Chalmers -

  4. QusJZyDpg6vqvEaU

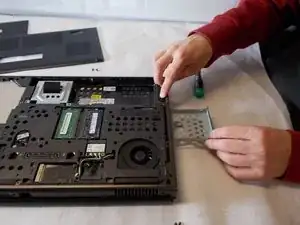

    • When the lock was slid, a medal holder popped out and that is where the SSD is hidden.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Kaley lindsay

Mitglied seit: 23/03/18

546 Reputation

Ein Kommentar

How do you remove the bottom? Instructions only show removal of battery then next step shows full access to bottom of laptop? My slide switch doesn’t release the door, any thoughts?

Jason Zuehlke -
