Dell Precision M6600 RAM Replacement

Geschrieben von: Kaley lindsay
  • Kommentare: 0
Dell Precision M6600 RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

10 Minuten

Einleitung

  1. LFqDcahOVu4bwGEO

    • Slide the lock key to unlock the battery. Then you can lift the battery from its holder.

  2. 4LTPhdJcXfyVgncZ
    4LTPhdJcXfyVgncZ
    IWGYoAAoZuhkmewo

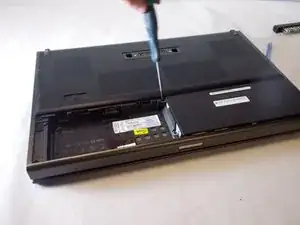

    • There are two 1.5mm screws that will be taken off using a Phillips #00 screw driver.

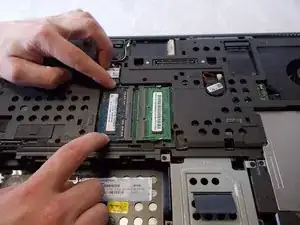

  3. KbhuJSEUR5bCL3GQ
    KbhuJSEUR5bCL3GQ
    ebhnmxXpuje25Jgw

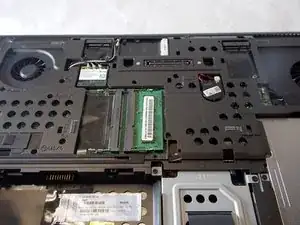

    • The RAM is held in place by two prongs. By pulling the two prongs lightly away from the chip the RAM is able to be pulled out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
