Dell Precision M6700 Hard Drive Replacement

Geschrieben von: Johnathan Hammond
  • Kommentare: 2
Dell Precision M6700 Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 - 20 Minuten

Einleitung

  1. PAWvleUMieLsxYXj
    PAWvleUMieLsxYXj
    HTCbsYPQC5YpNjEg

    • Slide the release latch to unlock the battery.

    • Flip and remove the battery from the computer.

  2. 5wDMcxVB6Fy2k62m
    5wDMcxVB6Fy2k62m
    2JaeWrLSAdJHlCQ4

    • Remove the screws that secure the base cover to the computer. Press the rubber tabs towards the rear of the computer to disengage the base cover.

    • Flip and remove the base cover from the computer

    What size screws are these?

    Chris C -

  3. nGfhpApqMZRyUIZT

    • Remove the screws that secure the primary hard drive to the computer. Slide the primary hard -drive latch to the unlock position and pull out the hard drive from the computer.

    What size screws are these? Thanks

    Chris C -

  4. lcbbZOilYBGvD1aE

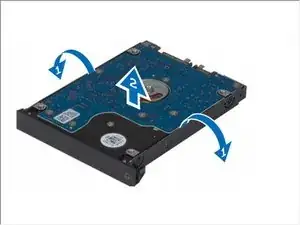

    • Flex the hard-drive bracket outward and pull out the hard drive from the bracket.

    • NOTE: A rubber filler is installed to the hard-drive bracket for 7 mm hard drives. It is designed to prevent vibrations and for correct installation of the 7 mm hard drives. 9 mm hard drives do not require the filler when installed into the hard-drive bracket.

  5. vgXhgVlKGnBJqxwE

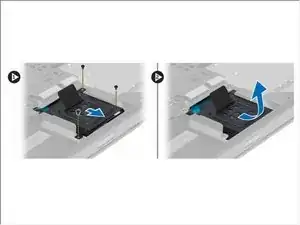

    • Remove the screw that secure that secondary hard drive in place.

    • Pull the tab upward and remove the secondary hard drive from the computer.

  6. njfvUM6Zu1fnyhRw

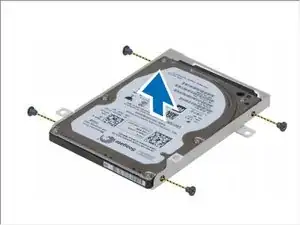

    • Remove the screw that secure secondary hard drive to the bracket.

    • Remove the secondary hard drive from the bracket.

Abschluss

To reassemble your device, follow these instructions in reverse order.
